GF..DO

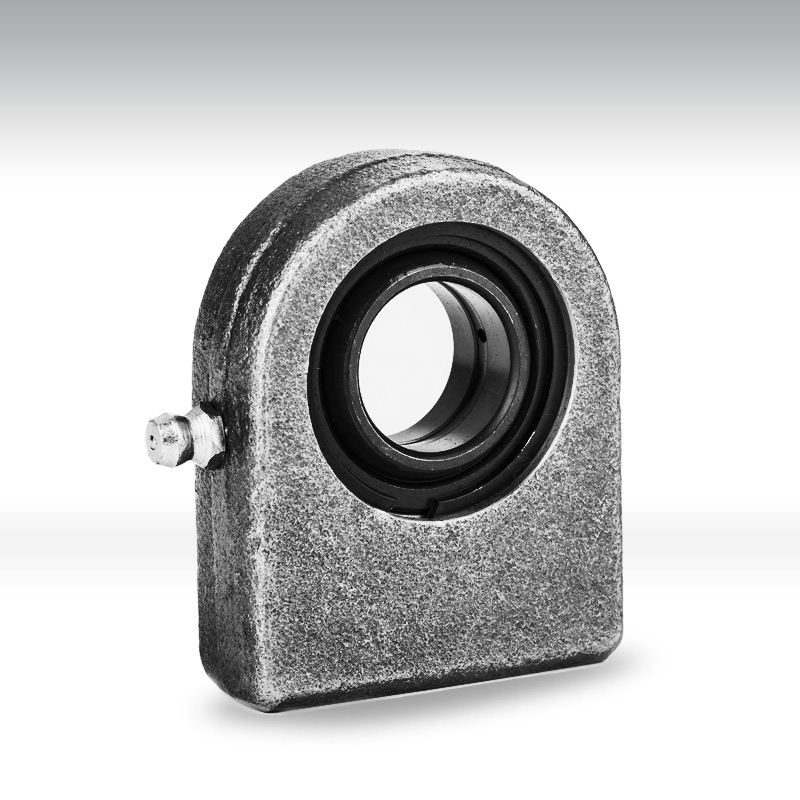

Rod end housing with weldable base.It is made up of a radial spherical plain bearing GE..ES or GE..ES 2RS and rod end housing.
Rod end housing with a lubricating hole or grease nipple.
|
Bearing number
|

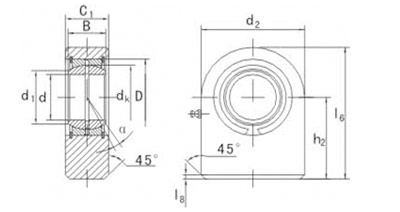

Dimenisions mm
|
Load ratings kN
|
Weight
|
||||||||||
|
d
|
B
|
C1
|
d2
|
l6
|
l8
|
h2
|
dk
|
d1
|
D
|
|
|
≈Kg
|
|
|
|
|
|
|
|
|
|
|
|
|
Dynamic
|
Static
|
|
|
|
GF20DO
|
20
|
16
|
19
|
50
|
63
|
2
|
38
|
29
|
24.2
|
35
|
30
|
67
|
0.35
|
|
GF25DO
|
25
|
20
|
23
|
55
|
72.5
|
2
|
45
|
35.5
|
29.3
|
42
|
48
|
69.5
|
0.53
|
|
GF30DO
|
30
|
22
|
28
|
65
|
83.5
|
2
|
51
|
40.7
|
34.2
|
47
|
62
|
118
|
0.87
|
|
GF35DO
|
35
|
25
|
30
|
83
|
102.5
|
2
|
61
|
47
|
39.8
|
55
|
80
|
196
|
1.5
|
|
GF40DO
|
40
|
28
|
35
|
100
|
119
|
3
|
69
|
53
|
45
|
62
|
100
|
300
|
2.4
|
|
GF45DO
|
45
|
32
|
40
|
110
|
132
|
3
|
77
|
60
|
50.8
|
68
|
127
|
380
|
3.4
|
|
GF50DO
|
50
|
35
|
40
|
123
|
149.5
|
3
|
88
|
66
|
55.9
|
75
|
156
|
440
|
4.4
|
|
GF60DO
|
60
|
44
|
50
|
140
|
170
|
4
|
100
|
80
|
66.8
|
90
|
245
|
570
|
7.1
|
|
GF70DO
|
70
|
49
|
55
|
164
|
197
|
4
|
115
|
92
|
77.9
|
105
|
315
|
695
|
10.5
|
|
GF80DO
|
80
|
55
|
60
|
180
|
231
|
4
|
141
|
105
|
89.4
|
120
|
400
|
780
|
15
|
|
GF90DO
|
90
|
60
|
65
|
226
|
263
|
4
|
150
|
115
|
98.1
|
130
|
490
|
1340
|
23.5
|
|
GF100DO
|
100
|
70
|
70
|
250
|
295
|
4
|
170
|
130
|
109.5
|
150
|
610
|
1500
|
31.5
|
|
GF110DO
|
110
|
70
|
80
|
295
|
332.5
|
4
|
185
|
140
|
121.2
|
160
|
655
|
2160
|
48.5
|
|
GF120DO
|
120
|
85
|
90
|
360
|
390
|
4
|
210
|
160
|
135.5
|
180
|
950
|
3250
|
79
|
