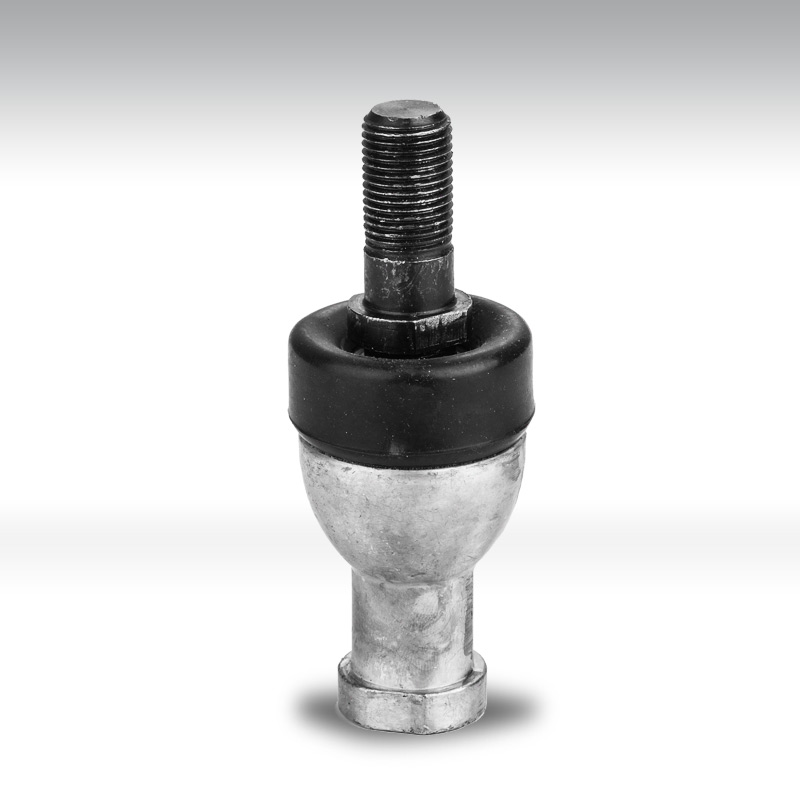

SQZ-RS
The shank of ball joint housing may be left-hand thread,for left-hand thread,suffix"L" is added to bearing number and thread sign,e.g.SQZL5-RS M5L-6H.
|
Bearing number
|

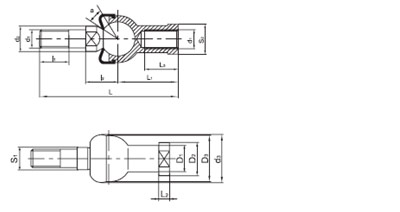

Dimenisions mm
|
|
Weight
|
||||||||||||||
|
d1
|
d2
|
d3
|
l1
|
l2
|
S1
|
L
|
L1
|
L2
|
L3
|
D1
|
D2
|
D3
|
S2
|
a°
|
Static Load ratings kN
|
≈Kg
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
≈
|
|
||
|
SQZ5-RS
|
M5
|
9
|
19
|
8
|
11
|
7
|
46
|
24
|
4
|
12
|
9
|
11
|
17
|
9
|
15
|
2.8
|
0.025
|
|
SQZ6-RS
|
M6
|
10
|
20
|
11
|
12.2
|
8
|
55.2
|
28
|
5
|
15
|
10
|
13
|
20
|
11
|
15
|
3.7
|
0.041
|
|
SQZ8-RS
|
M8
|
12
|
24
|
12
|
16
|
10
|
65
|
32
|
5
|
16
|
12.5
|
16
|
24
|
14
|
15
|
5.8
|
0.075
|
|
SQZ10-RS
|
M10x1.25
|
14
|
30
|
15
|
19.5
|
11
|
74.5
|
35
|
6.5
|
18
|
15
|
19
|
28
|
17
|
15
|
8.4
|
0.12
|
|
SQZ12-RS
|
M12x1.25
|
17
|
32
|
17
|
21
|
15
|
84
|
40
|
6.5
|
20
|
17.5
|
22
|
32
|
19
|
15
|
11
|
0.18
|
|
SQZ14-RS
|
M14x1.5
|
19
|
38
|
22
|
23.5
|
17
|
103
|
45
|
8
|
25
|
20
|
25
|
36
|
22
|
11
|
15
|
0.27
|
|
SQZ16-RS
|
M16x1.5
|
22
|
44
|
23
|
23.5
|
19
|
112
|
50
|
8
|
27
|
22
|
27
|
40
|
22
|
11
|
15
|
0.36
|
|
SQZ18-RS
|
M18x1.5
|
23
|
45
|
25
|
31
|
20
|
130.5
|
58
|
10
|
32
|
25
|
31
|
45
|
27
|
11
|
19
|
0.54
|
|
SQZ20-RS
|
M20x1.5
|
27
|
50
|
25
|
29
|
24
|
133
|
63
|
10
|
38
|
27.5
|
34
|
45
|
30
|
7.5
|
19
|
0.57
|
|
SQZ22-RS
|
M22x1.5
|
27
|
52
|
26
|
33
|
24
|
145
|
70
|
12
|
43
|
30
|
37
|
50
|
32
|
7.5
|
23
|
0.76
|
