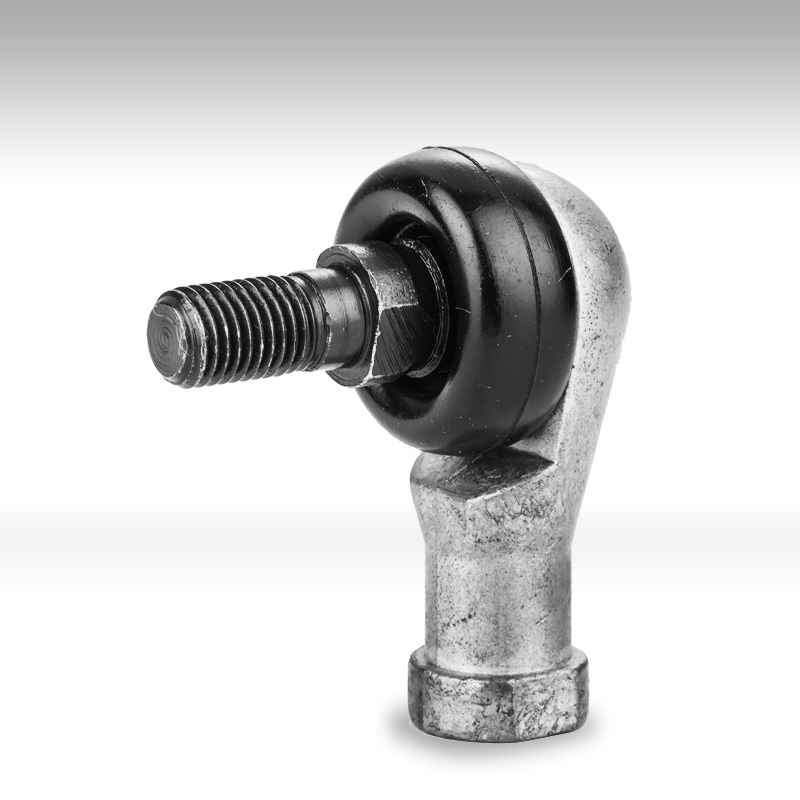

SQ-RS
The shank of ball joint housing may be left-hand thread,for left-hand thread,suffix"L" is added to bearing number and thread sign,e.g.SQL5-RS M5L-6H.
|

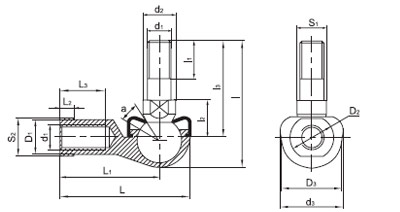

Bearing number
|
Dimenisions mm
|
|
Weight
|
||||||||||||||||
|
d1
|
d2
|
d3
|
l
|
l1
|
l2
|
l3
|
S1
|
L
|
L1
|
L2
|
L3
|
D1
|
D2
|
D3
|
S2
|
a°
|
Static Load ratings kN
|
≈Kg
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
≈
|
|
||
|
SQ5-RS
|
M5
|
9
|
19
|
29
|
8
|
10
|
21
|
7
|
35
|
27
|
4
|
14
|
9
|
11
|
16
|
9
|
25
|
2.2
|
0.026
|
|
SQ6-RS
|
M6
|
10
|
20
|
35.5
|
11
|
11
|
26
|
8
|
40
|
30
|
5
|
14
|
10
|
13
|
19
|
11
|
25
|
3.5
|
0.039
|
|
SQ8-RS
|
M8
|
12
|
24
|
42.5
|
12
|
14
|
31
|
10
|
48
|
36
|
5
|
17
|
12.5
|
16
|
23
|
14
|
25
|
6.6
|
0.068
|
|
SQ10-RS
|
M10x1.25
|
14
|
30
|
50.5
|
15
|
17
|
37
|
11
|
57
|
43
|
6.5
|
21
|
15
|
19
|
27
|
17
|
25
|
10
|
0.112
|
|
SQ12-RS
|
M12x1.25
|
17
|
32
|
57.5
|
17
|
19
|
42
|
15
|
66
|
50
|
6.5
|
25
|
17.5
|
22
|
31
|
19
|
25
|
16
|
0.164
|
|
SQ14-RS
|
M14x1.5
|
19
|
38
|
73.5
|
22
|
21.5
|
56
|
17
|
75
|
57
|
8
|
26
|
20
|
25
|
35
|
22
|
25
|
19
|
0.254
|
|
SQ16-RS
|
M16x1.5
|
22
|
44
|
79.5
|
23
|
23.5
|
60
|
19
|
84
|
64
|
8
|
32
|
22
|
27
|
39
|
22
|
20
|
26
|
0.336
|
|
SQ18-RS
|
M18x1.5
|
23
|
45
|
90
|
25
|
26.5
|
68
|
20
|
93
|
71
|
10
|
34
|
25
|
31
|
44
|
27
|
20
|
33
|
0.464
|
|
SQ20-RS
|
M20x1.5
|
27
|
50
|
90
|
25
|
27
|
68
|
24
|
99
|
77
|
10
|
35
|
27.5
|
34
|
44
|
30
|
20
|
45
|
0.538
|
|
SQ22-RS
|
M22x1.5
|
27
|
52
|
95
|
26
|
28
|
70
|
24
|
109
|
84
|
12
|
41
|
30
|
37
|
50
|
32
|
16
|
48
|
0.713
|
