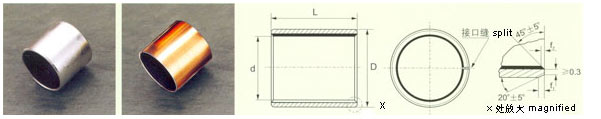

SF-1 Self-Lubricating Bearings (Metric Sizes)

d	D	Axle 轴径		Housing H7 座孔		Wall Thickness 壁厚		f1	f2	L 0 ( D≤Ø28 L -0.30 ) -0.40 d>Ø30 L -0.40

						Min	Max			6	8	10	12	15	20	25	30	40	50	60
6	8	6	-0.013	8	+0.015	0.98	1.01	0.5	0.3	0606	0608	0610
			-0.028		0
8	10	8	-0.013	10	+0.015					0806	0808	0810	0812	0815
			-0.028		0
10	12	10	-0.016	12	+0.018					1006	1008	1010	1012	1015	1020
			-0.034		0
14	16	14	-0.016	16	+0.018							1410	1412	1415	1420	1425
			-0.034		0
16	18	16	-0.016	18	+0.018							1610	1612	1615	1620	1625
			-0.034		0
17	19	17	-0.016	19	+0.021							1710	1712		1720
			-0.034		0
18	20	18	-0.016	20	+0.021							1810	1812	1815	1820	1825
			-0.034		0
20	23	20	-0.02	23	+0.021	1.48	1.51	0.8	0.4			2010	2012	2015	2020	2025	2030
			-0.041		0
22	25	22	-0.02	25	+0.021							2210	2212	2215	2220	2225	2230
			-0.041		0
24	27	24	-0.02	27	+0.021									2415	2420	2425	2430
			-0.041		0
25	28	25	-0.02	28	+0.021							2510	2512	2515	2520	2525	2530	2540	2550
			-0.041		0
28	32	28	-0.02	32	+0.025	1.97	2.01	1	0.6					2815	2820	2825	2830	2840
			-0.041		0
30	34	30	-0.02	34	+0.025								3012	3015	3020	3025	3030	3040
			-0.041		0
32	36	32	-0.025	36	+0.025										3220		3230	3240
			-0.05		0
35	39	35	-0.025	39	+0.025								3512	3515	3520	3525	3530	3540	3550
			-0.05		0
38	42	38	-0.025	42	+0.025									3815			3830	3840
			-0.05		0
40	44	40	-0.025	44	+0.025								4012		4020	4025	4030	4040	4050
			-0.05		0
