SAZJ

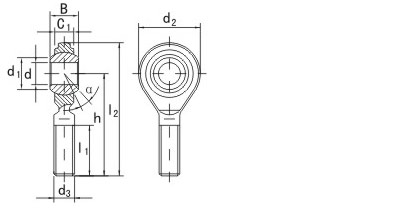

Rod body with right or left-hand male thread.Rod body pressed around inner ring.
Surface of rod body zinc plated.
In inch dimension series.
|
Bearing number
|
Dimenisions mm
|
Load ratings kN
|
Weight
|
|||||||||||
|
d
|
d3
|
B
|
C1
|
l1
|
d2
|
h
|
l2
|
d1
|
R1s
|
a°
|
|
|
≈Kg
|
|
|
|
6g
|
|
|
min
|
|
|
|
min
|
|
≈
|
Dynamic
|
Static
|
|
|
|
SAZJ4*
|
4.826
|
10-32
|
7.92
|
5.94
|
19.05
|
15.88
|
31.75
|
39.7
|
7.8
|
0.3
|
10
|
3.6
|
3.8
|
0.014
|
|
SAZJ6*
|
6.35
|
1/4-28
|
9.53
|
6.35
|
25.4
|
19.05
|
39.67
|
49.2
|
8.4
|
0.3
|
13.5
|
5.4
|
6.6
|
0.018
|
|
SAZJ7*
|
7.938
|
5/16-24
|
11.1
|
7.92
|
31.75
|
22.23
|
47.63
|
58.74
|
11.4
|
0.3
|
11
|
8.5
|
12
|
0.032
|
|
SAZJ9
|
9.525
|
3/8-24
|
12.7
|
9.12
|
31.75
|
25.4
|
49.23
|
61.93
|
13.1
|
0.6
|
11
|
11
|
16
|
0.05
|
|
SAZJ11
|
11.113
|
7/16-20
|
14.27
|
10.31
|
34.93
|
28.58
|
53.98
|
68.28
|
14.9
|
0.6
|
10.5
|
14
|
21
|
0.068
|
|
SAZJ12
|
12.7
|
1/2-20
|
15.88
|
11.5
|
38.1
|
33.32
|
61.93
|
78.59
|
17.7
|
0.6
|
10
|
18
|
28
|
0.11
|
|
SAZJ15
|
15.875
|
5/8-18
|
19.05
|
12.29
|
41.28
|
38.1
|
66.68
|
85.73
|
21.3
|
0.6
|
13
|
23
|
29
|
0.16
|
|
SAZJ19
|
19.05
|
3/4-16
|
22.23
|
15.06
|
44.45
|
44.45
|
73.03
|
95.25
|
24.8
|
0.6
|
12
|
34
|
44
|
0.26
|
