Full complement needle roller bearings RNAV NAV

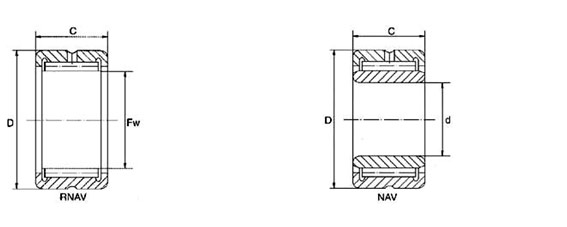

Shaft Diameter 轴径	Bearing Number	Weight	Boundary Dimensions			Basic Load Rating		Limiting Speed
	轴承代号		外形尺寸			基本额定负荷		极限转速
			Fw	D	C	Cr 动	Cor 静	Oil 油润滑
		重量	Fw	D	C	Cr 动	Cor 静	Oil 油润滑
mm		g	mm			N		rpm
Without inner ring 无内圈
21.87	RNAV4002	45	21.87	32	17	10800	29800	4500
24.3	RNAV4003	62	24.3	35	18	17900	37900	4300
28.7	RNAV4004	114	28.7	42	22	28150	60900	3900
33.5	RNAV4005	129	33.5	47	22	33800	70800	3700
40.1	RNAV4006	193	40.1	55	25	49900	96500	3500
45.9	RNAV4007	259	45.9	62	27	47600	122800	3100
51.6	RANV4008	304	51.6	68	28	49900	137900	2700
57.4	RNAV4009	390	57.4	75	30	52500	153500	2600
62.1	RNAV4010	426	62.1	80	30	55700	166000	2500
69.8	RNAV4011	645	69.8	90	35	68500	225800	2300
74.6	RANV4012	677	74.6	95	35	75400	239000	2100
80.3	RNAV4013	692	80.3	100	35	79500	256900	1900
88	RNAV4014	950	88	110	40	98800	354900	1700
92.7	RNAV4015	1000	92.7	115	40	101800	372900	1600
100.3	RNAV4016	1400	100.3	125	45	102900	373500	1500
104.8	RNAV4017	1540	104.8	130	45	103800	374800	1400
With inner ring 有内圈
15	NAV4002	76	15	32	17	10800	29800	4500
17	NAV4003	94	17	35	18	17900	37900	4300
20	NAV4004	170	20	42	22	28150	60900	3900
25	NAV4005	195	25	47	22	33800	70800	3700
30	NAV4006	299	30	55	25	49900	96500	3500
35	NAV4007	402	35	62	27	47600	122800	3100
40	NAV4008	482	40	68	28	49900	137900	2700
45	NAV4009	617	45	75	30	52500	153500	2600
50	NAV4010	669	50	80	30	55700	166000	2500
55	NAV4011	1030	55	90	35	68500	225800	2300
60	NAV4012	1087	60	95	35	75400	239000	2100
65	NAV4013	1156	65	100	35	79500	256900	1900
70	NAV4014	1666	70	110	40	98800	354900	1700
75	NAV4015	1762	75	115	40	101800	372900	1600
80	NAV4016	2450	80	125	45	102900	373500	1500
85	NAV4017	2500	85	130	45	103800	374800	1400
17		126	17	35	24.5	8700	10800	4200
15		100	15	36	24.5	8900	11200	4400
