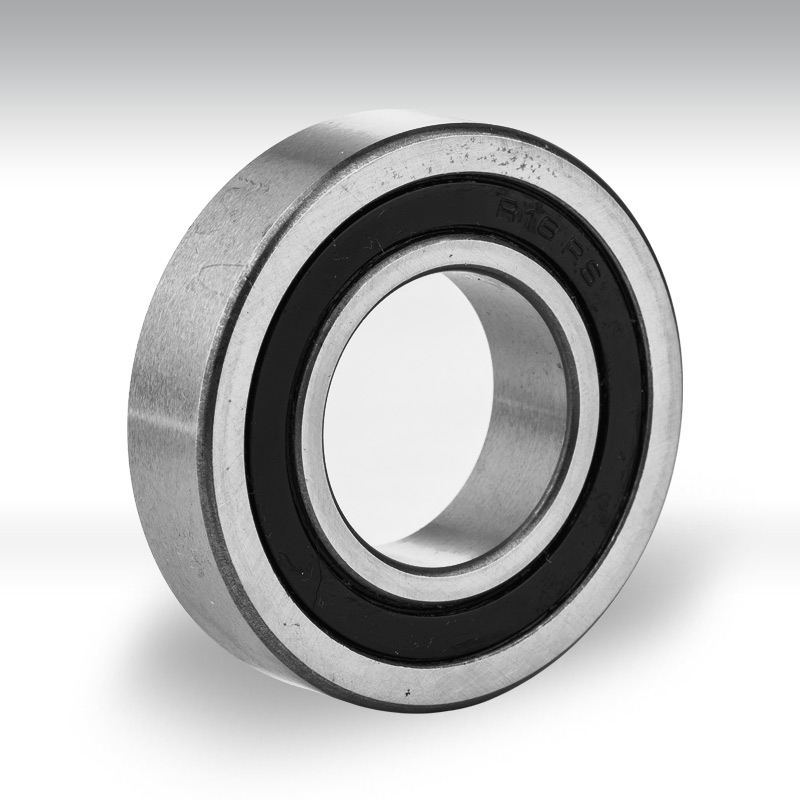

R series

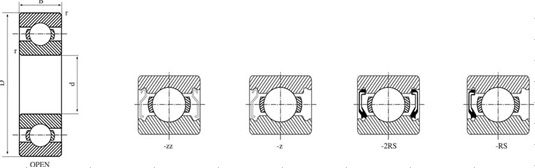

Notes:
B - Width for Open Types
B1 - Width for ZZ/2RS Type
|
Bearing No.
|
d
|
D
|
B
|
B1
|
r (min.)
|
Basic Load Rating(KN)
|
Weight
|
|
|
Dynamic
|
Static
|
Kg(pc)
|
||||||
|
Cr
|
Cor
|
|||||||
|
R2
|
3.175
|
9.525
|
3.969
|
3.969
|
0.3
|
0.64
|
0.226
|
0.0014
|
|
R2A
|
3.175
|
12.7
|
4.366
|
4.366
|
0.3
|
0.64
|
0.226
|
0.0033
|
|
R3
|
4.762
|
12.7
|
3.969
|
4.978
|
0.3
|
1.31
|
0.485
|
0.0029
|
|
R4
|
6.35
|
15.875
|
4.978
|
4.978
|
0.3
|
1.47
|
0.6
|
0.0045
|
|
R4A
|
6.35
|
19.05
|
5.556
|
7.144
|
0.4
|
2.41
|
0.911
|
0.008
|
|
R6
|
9.525
|
22.225
|
5.558
|
7.142
|
0.3
|
2.57
|
1.36
|
0.0096
|
|
R8
|
12.7
|
28.575
|
6.35
|
7.938
|
0.3
|
5.11
|
2.39
|
0.0169
|
|
R10
|
15.875
|
34.925
|
7.144
|
8.73
|
0.6
|
6
|
3.25
|
0.0292
|
|
R12
|
19.05
|
41.275
|
7.938
|
11.112
|
0.6
|
9.38
|
5.03
|
0.0447
|
|
R14
|
22.225
|
47.625
|
9.525
|
12.7
|
0.6
|
10.06
|
5.85
|
0.0748
|
|
R16
|
25.4
|
50.8
|
9.525
|
12.7
|
0.6
|
10.06
|
5.85
|
0.0808
|
|
R18
|
28.575
|
53.975
|
9.525
|
12.7
|
0.6
|
13.23
|
8.3
|
0.0847
|
|
R20
|
31.75
|
57.15
|
9.525
|
12.7
|
1
|
13.23
|
8.3
|
0.0903
|
|
R22
|
34.925
|
63.5
|
11.112
|
14.288
|
1
|
16.21
|
10.42
|
0.1332
|
|
R24
|
38.1
|
66.675
|
11.112
|
14.288
|
1
|
17.03
|
11.7
|
0.1384
|
