PHS

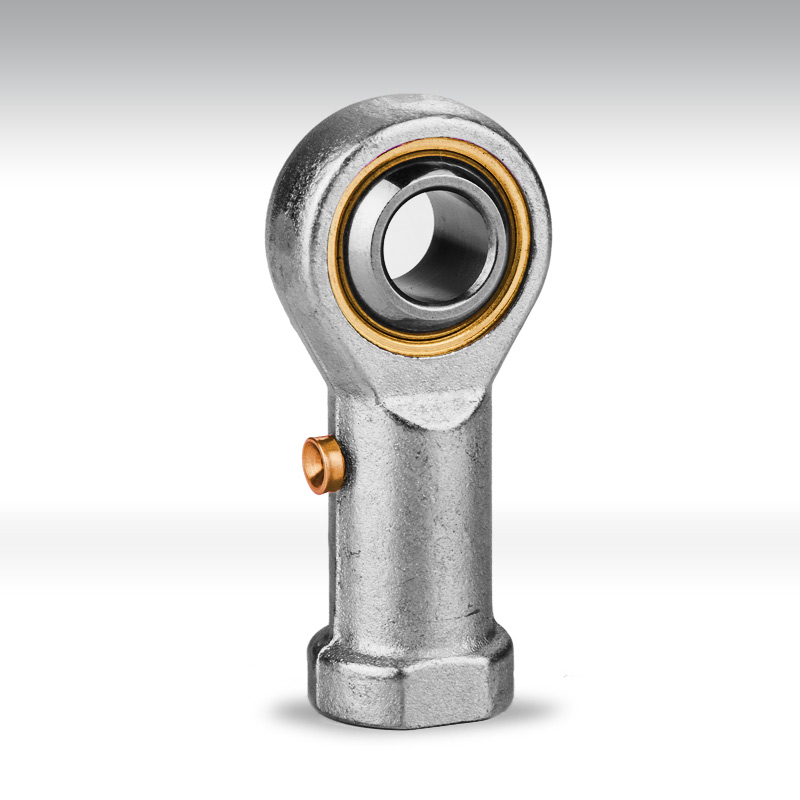

-Rod body with right or left-hand female thread.-Outer race lined with bronze liner.
-Surface of rod body zinc plated,rot body with a lubricating hole or grease nipple.
|

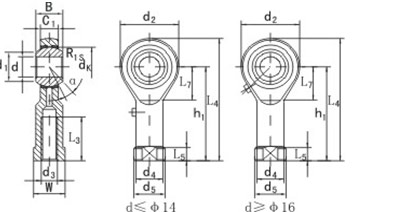

Bearing number
|
Dimenisions mm
|
Load ratings kN
|
Weight
|
|||||||||||||||
|
d
|
d3
|
B
|
C1
|
L3
|
W
|
d2
|
d1
|
h1
|
L4
|
L5
|
d4
|
d5
|
dk
|
a°
|
|
|
≈Kg
|
|
|
|
6H
|
|
|
min
|
|
|
|
|
|
|
|
|
|
≈
|
Dynamic
|
Static
|
|
|
|
PHS5
|
5
|
M5x0.8
|
8
|
6
|
10
|
9
|
16
|
7.7
|
27
|
35
|
4
|
8.5
|
11
|
11.11
|
13
|
3.25
|
5.7
|
0.016
|
|
PHS6
|
6
|
M6x1.0
|
9
|
6.75
|
12
|
11
|
18
|
8.96
|
30
|
39
|
5
|
10
|
13
|
12.7
|
13
|
4.3
|
7.2
|
0.022
|
|
PHS8
|
8
|
M8x1.25
|
12
|
9
|
16
|
14
|
22
|
10.4
|
36
|
47
|
5
|
12.5
|
16
|
15.875
|
14
|
7.2
|
11.6
|
0.047
|
|
PHS10
|
10
|
M10x1.5
|
14
|
10.5
|
20
|
17
|
26
|
12.9
|
43
|
56
|
6.5
|
15
|
19
|
19.05
|
13
|
10
|
14.5
|
0.077
|
|
PHS10-1
|
10
|
M10x1.25
|
14
|
10.5
|
20
|
17
|
26
|
12.9
|
43
|
56
|
6.5
|
15
|
19
|
19.05
|
13
|
10
|
14.5
|
0.077
|
|
PHS12
|
12
|
M12x1.75
|
16
|
12
|
22
|
19
|
30
|
15.4
|
50
|
65
|
6.5
|
17.5
|
22
|
22.225
|
13
|
13.4
|
17
|
0.1
|
|
PHS12-1
|
12
|
M12x1.25
|
16
|
12
|
22
|
19
|
30
|
15.4
|
50
|
65
|
6.5
|
17.5
|
22
|
22.225
|
13
|
13.4
|
17
|
0.1
|
|
PHS14
|
14
|
M14x2.0
|
19
|
13.5
|
25
|
22
|
34
|
16.9
|
57
|
74
|
8
|
20
|
25
|
25.4
|
16
|
17
|
24
|
0.16
|
|
PHS14-1
|
14
|
M14x1.5
|
19
|
13.5
|
25
|
22
|
34
|
16.9
|
57
|
74
|
8
|
20
|
25
|
25.4
|
16
|
17
|
24
|
0.16
|
|
PHS16
|
16
|
M16x2.0
|
21
|
15
|
28
|
22
|
40
|
19.4
|
64
|
84
|
8
|
22
|
27
|
28.575
|
15
|
21.6
|
28.5
|
0.22
|
|
PHS16-1
|
16
|
M16x1.5
|
21
|
15
|
28
|
22
|
40
|
19.4
|
64
|
84
|
8
|
22
|
27
|
28.575
|
15
|
21.6
|
28.5
|
0.22
|
|
PHS18
|
18
|
M18x1.5
|
23
|
16.5
|
32
|
27
|
44
|
21.9
|
71
|
93
|
10
|
25
|
31
|
31.75
|
15
|
26
|
42.5
|
0.32
|
|
PHS20
|
20
|
M20x1.5
|
25
|
18
|
33
|
30
|
50
|
24.4
|
77
|
102
|
10
|
27.5
|
34
|
34.925
|
14
|
31.5
|
42.5
|
0.42
|
|
PHS22
|
22
|
M22x1.5
|
28
|
20
|
37
|
32
|
54
|
25.8
|
84
|
111
|
12
|
30
|
38
|
38.1
|
15
|
38
|
57
|
0.54
|
|
PHS25
|
25
|
M24x2.0
|
31
|
22
|
42
|
36
|
60
|
29.6
|
94
|
124
|
12
|
33.5
|
42
|
42.85
|
15
|
47.5
|
68
|
0.73
|
|
PHS28
|
28
|
M27x2.0
|
35
|
24
|
48
|
41
|
66
|
32.3
|
103
|
136
|
14
|
37.5
|
46
|
47.6
|
15
|
58
|
75
|
0.98
|
|
PHS30
|
30
|
M30x2.0
|
37
|
25
|
51
|
41
|
70
|
34.8
|
110
|
145
|
15
|
40
|
50
|
50.8
|
17
|
64
|
88
|
1.1
|
|
PHS30-1
|
30
|
M27x2.0
|
37
|
25
|
51
|
41
|
70
|
34.8
|
110
|
145
|
15
|
40
|
50
|
50.8
|
17
|
64
|
88
|
1.1
|
