Needle roller with shoulder and inner ring NAO

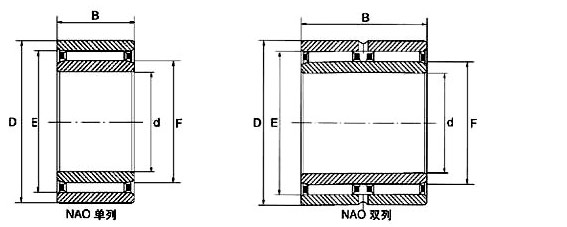

Shaft Diameter 轴径	Bearing Number 轴承代号	Boundary Dimensions 外形尺寸					Basic Load Rating 基本额定负荷		Limiting Speed 极限转速


		d	D	B	F	E	Cr 动	Cor 静	Oil 油润滑
		d	D	B	F	E	Cr 动	Cor 静	Oil 油润滑
mm		mm					N		rpm
6	NAO6X17X10TN	6	17	10	10	13	3950	5000	17080
9	NAO9X22X12TN	9	22	12	12	18	8800	7900	12090
12	NAO12X24X13	12	24	13	16	20	8000	16000	15020
	NAO12X24X20	12	24	20	16	20	10300	16800	20000
	NAO12X28X12	12	28	12	16	22	9850	10500	19000
15	NAO15X28X13	15	28	13	20	24	7800	10300	20600
15	NAO15X32X12	15	32	12	20	26	10400	14020	20000
17	NAO17X30X13	17	30	13	22	26	9860	15000	20000
17	NAO17X35X16	17	35	16	22	29	16800	20050	10090
20	NAO20X35X17	20	35	17	25	29	12600	20200	16000
20	NAO20X37X16	20	37	16	25	32	10000	18000	12700
25	NAO25X40X17	25	40	17	30	35	10600	24000	10500
	NAO25X42X16	25	42	16	30	37	13100	23500	10500
	NAO25X42X32	25	42	32	30	37	26500	47000	10500
30	NAO30X45X13	30	45	13	35	40	11200	25000	11207
	NAO30X45X17	30	45	17	35	40	12800	28500	11207
	NAO30X45X26	30	45	26	35	40	17500	32900	11207
	NAO30X47X16	30	47	16	35	42	14400	17500	11207
	NAO30X47X18	30	47	18	35	42	20000	33000	11207
	NAO30X52X18	30	52	18	37	44	18000	25500	10900
35	NAO35X50X17	35	50	17	40	45	20800	40506	10900
	NAO35X55X20	35	55	20	40	47	28500	41000	10000
	NAO35X57X20.5	35	57	20.5	42	50	26000	49000	10000
40	NAO40X55X17	40	55	17	45	50	12500	36000	9000
40	NAO40X65X20	40	65	20	50	58	35000	61200	8000
50	NAO50X68X20	50	68	20	55	60	24500	62000	7500
50	NAO50X78X20	50	78	20	60	68	33500	65000	6500
70	NAO70X100X30	70	100	30	80	88	52600	129000	4000
75	NAO75X105X25	75	105	25	85	93	42000	106000	3900
80	NAO80X110X30	80	110	30	90	98	49020	112000	4200
90	NAO90X120X30	90	120	30	100	108	51000	128000	3900
