Lock washer

CONTACT US

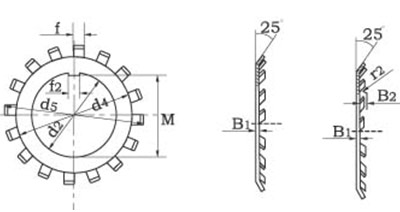

Lock washer
Dimensions(mm)
Weight (kg)
d2
d5≈
M
f1 Max
B1≈
MB00
10
21
8.5
3
1
0.131
MB01
12
25
10.5
3
1
0.192
MB02
15
28
13.5
4
1
0.253
MB03
17
32
15.5
4
1
0.313
MB04
20
36
18.5
4
1
0.35
MB05
25
42
23
5
1.25
0.64
MB06
30
49
27.5
5
1.25
0.78
MB07
35
57
32.5
5
1.25
1.04
MB08
40
62
37.5
6
1.25
1.23
MB09
45
69
42.5
6
1.25
1.52
MB10
50
74
47.5
6
1.25
1.6
MB11
55
81
52.5
7
1.5
1.96
MB12
60
86
57.5
7
1.5
2.53
MB13
65
92
62.5
7
1.5
2.9
MB14
70
98
66.5
8
1.5
3.34
MB15
75
104
71.5
8
1.5
3.56
MB16
80
112
76.5
8
1.8
4.64
MB17
85
119
81.5
8
1.8
5.24
MB18
90
126
86.5
10
1.8
6.23
MB19
95
133
91.5
10
1.8
6.7
MB20
100
142
96.5
12
1.8
7.65
MB21
105
145
100.5
12
1.8
8.26
MB22
110
154
105.5
132
1.8
9.4
MB23
115
159
110.5
12
2
10.8
MB24
120
164
115
14
2
10.5
MB25
125
170
120
14
2
11.8
Lock washer
Dimensions(mm)
Weight (kg)
d2
d5≈
M
f1 Max
B1≈
MB26
130
175
125
14
2
11.3
MB27
135
185
130
14
2
14.4
MB28
140
192
130.5
16
2
14.2
MB29
145
202
140
16
2
16.8
MB30
150
205
145
16
2
15.5
MB31
155
212
147.5
16
2.5
20.9
MB32
160
217
154
18
2.5
22.2
MB33
165
222
157.5
18
2.5
24.1
MB34
170
232
164
18
2.5
24.7
MB36
180
242
174
20
2.5
26.8
MB38
190
252
184
20
2.5
27.8
MB40
200
262
194
20
2.5
29.3
MB44
220
292
213
24
3

MB48
240
312
233
24
3

MB52
260
342
253
28
3

MB56
280
362
273
28
3
