Lock nut
|
Lock nut
|

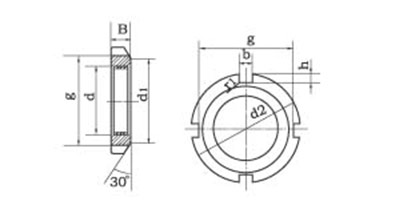

Dimensions(mm)
|
Weight (kg)
|
||||
|
d
|
d2
|
B
|
b
|
h
|
||
|
KM00
|
M10X0.75
|
18
|
4
|
3
|
2
|
0.005
|
|
KM01
|
M12X1
|
22
|
4
|
3
|
2
|
0.007
|
|
KM02
|
M15X1
|
25
|
5
|
4
|
2
|
0.01
|
|
KM03
|
M17X1
|
28
|
5
|
4
|
2
|
0.013
|
|
KM04
|
M20X1
|
32
|
6
|
4
|
2
|
0.019
|
|
KM05
|
M25X1.5
|
38
|
7
|
5
|
2
|
0.025
|
|
KM06
|
M30X1.5
|
45
|
7
|
5
|
2
|
0.043
|
|
KM07
|
M35X1.5
|
52
|
8
|
5
|
2
|
0.053
|
|
KM08
|
M40X1.5
|
58
|
9
|
6
|
2.5
|
0.085
|
|
KM09
|
M45X1.5
|
65
|
10
|
6
|
2.5
|
0.119
|
|
KM10
|
M50X1.5
|
70
|
11
|
6
|
2.5
|
0.148
|
|
KM11
|
M55X2
|
75
|
11
|
7
|
3
|
0.158
|
|
KM12
|
M60X2
|
80
|
11
|
7
|
3
|
0.174
|
|
KM13
|
M65X2
|
85
|
12
|
7
|
3
|
0.203
|
|
KM14
|
M70X2
|
92
|
12
|
8
|
3.5
|
0.242
|
|
KM15
|
M75X2
|
98
|
13
|
8
|
3.5
|
0.287
|
|
KM16
|
M80X2
|
105
|
15
|
8
|
3.5
|
0.397
|
|
KM17
|
M85X2
|
110
|
16
|
8
|
3.5
|
0.451
|
|
KM18
|
M90X2
|
120
|
16
|
10
|
4
|
0.556
|
|
KM19
|
M95X2
|
125
|
17
|
10
|
4
|
0.658
|
|
KM20
|
M100X2
|
130
|
18
|
10
|
4
|
0.698
|
|
KM21
|
M105X2
|
140
|
18
|
12
|
5
|
0.845
|
|
KM22
|
M110X2
|
145
|
19
|
12
|
5
|
0.965
|
|
KM23
|
M115X2
|
150
|
19
|
12
|
5
|
1.01
|
|
KM24
|
M120X2
|
155
|
20
|
12
|
5
|
1.08
|
|
KM25
|
M125X2
|
160
|
21
|
12
|
5
|
1.19
|
|
Lock nut
|
Dimensions(mm)
|
Weight (kg)
|
||||
|
d
|
d2
|
B
|
b
|
h
|
||
|
KM26
|
M130X2
|
165
|
21
|
12
|
5
|
1.25
|
|
KM27
|
M135X2
|
175
|
22
|
14
|
6
|
1.55
|
|
KM28
|
M140X2
|
180
|
22
|
14
|
6
|
1.56
|
|
KM29
|
M145X2
|
190
|
24
|
14
|
6
|
2
|
|
KM30
|
M150X2
|
195
|
24
|
14
|
6
|
2.03
|
|
KM31
|
M155X3
|
200
|
25
|
16
|
7
|
2.21
|
|
KM32
|
M160X3
|
210
|
25
|
16
|
7
|
2.43
|
|
KM33
|
M165X3
|
210
|
26
|
16
|
7
|
2.59
|
|
KM34
|
M170X3
|
220
|
26
|
16
|
7
|
2.8
|
|
KM36
|
M180X3
|
230
|
27
|
18
|
8
|
3.07
|
|
KM38
|
M190X3
|
240
|
28
|
18
|
8
|
3.39
|
|
KM40
|
M200X4
|
250
|
29
|
18
|
8
|
3.69
|
|
KM44
|
Tr220X4
|
280
|
32
|
20
|
10
|
5.2
|
|
KM48
|
Tr240X4
|
300
|
34
|
20
|
10
|
5.95
|
|
KM52
|
Tr260X4
|
330
|
36
|
24
|
12
|
8.08
|
|
KM56
|
Tr280X4
|
350
|
38
|
24
|
12
|
9.05
|
|
KM60
|
Tr300X4
|
380
|
40
|
24
|
12
|
11.8
|
|
KM64
|
Tr320X5
|
400
|
42
|
24
|
12
|
13.1
|
|
KM68
|
Tr340X5
|
440
|
55
|
28
|
15
|
23.1
|
|
KM72
|
Tr360X5
|
460
|
58
|
28
|
15
|
25.1
|
|
KM76
|
Tr380X5
|
490
|
60
|
32
|
18
|
30.9
|
|
KM80
|
Tr400X5
|
520
|
62
|
32
|
18
|
36.9
|
|
KM84
|
Tr420X5
|
540
|
70
|
32
|
18
|
43.5
|
|
KM88
|
Tr440X5
|
560
|
70
|
36
|
20
|
45.3
|
|
KM92
|
Tr460X5
|
580
|
75
|
36
|
20
|
50.4
|
|
KM96
|
Tr480X5
|
620
|
75
|
36
|
20
|
62.2
|
|
KM100
|
Tr500X5
|
630
|
80
|
40
|
23
|
63.3
|
