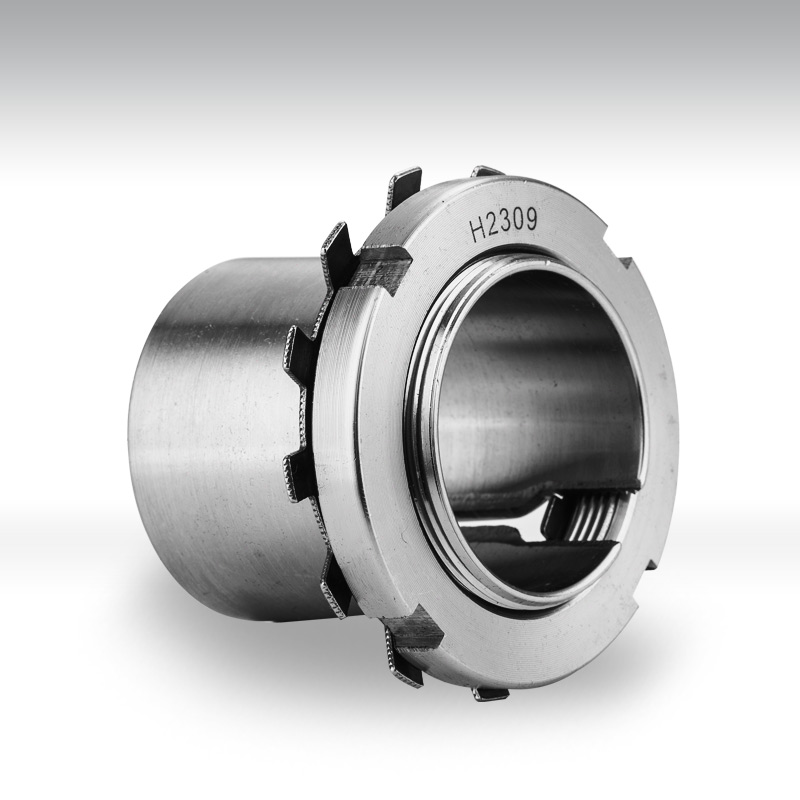

H3100
|
Adapter
|
Shaft d1
|

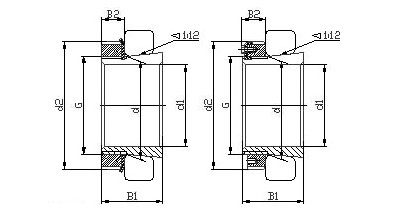

Dimensions(mm)
|
Weight
|
Composition
|
|||||||||
|
Sleeve
|
H
|
HE
|
HA
|
d
|
d2
|
B1
|
B2
|
G
|
(kg)
|
Sleeve
|
Lock nut
|
Lock washer
|
Lock card
|
|
|
mm
|
in
|
in
|
|
|||||||||
|
H3120
|
90
|
3-1/2
|
3-7/16
|
100
|
130
|
76
|
20
|
M100×2
|
1.8
|
A3120
|
KM20
|
MB20
|
|
|
H3122
|
100
|
4
|
3-15/16
|
110
|
145
|
81
|
21
|
M110×2
|
2.4
|
A3122
|
KM22
|
MB22
|
|
|
H3124
|
110
|
4-1/4
|
4-3/16
|
120
|
155
|
88
|
22
|
M120×2
|
2.65
|
A3124
|
KM24
|
MB24
|
|
|
H3126
|
115
|
4-1/2
|
4-7/16
|
130
|
165
|
92
|
23
|
M130×2
|
3.65
|
A3126
|
KM26
|
MB26
|
|
|
H3128
|
125
|
5
|
4-15/16
|
140
|
180
|
97
|
24
|
M140×2
|
4.35
|
A3128
|
KM28
|
MB28
|
|
|
H3130
|
135
|
5-1/4
|
5-3/16
|
150
|
195
|
111
|
26
|
M150×2
|
5.5
|
A3130
|
KM30
|
MB30
|
|
|
H3132
|
140
|
5-1/2
|
5-7/16
|
160
|
210
|
119
|
28
|
M160×3
|
7.65
|
A3132
|
KM32
|
MB32
|
|
|
H3134
|
150
|
6
|
5-15/16
|
170
|
220
|
122
|
29
|
M170×3
|
8.4
|
A3134
|
KM34
|
MB34
|
|
|
H3136
|
160
|
6-1/2
|
6-7/16
|
180
|
230
|
131
|
30
|
M180×3
|
9.5
|
A3136
|
KM36
|
MB36
|
|
|
H3138
|
170
|
6-3/4
|
6-15/16
|
190
|
240
|
141
|
31
|
M190×3
|
11
|
A3138
|
KM38
|
MB38
|
|
|
H3140
|
180
|
7
|
7-3/16
|
200
|
250
|
150
|
32
|
M200×3
|
12
|
A3140
|
KM40
|
MB40
|
|
|
H3144
|
200
|
|
7-15/16
|
220
|
280
|
161
|
44
|
T220×4
|
15
|
A3144
|
KM44
|
|
MS44
|
|
H3148
|
220
|
|
|
240
|
300
|
172
|
46
|
T240×4
|
18
|
A3148
|
KM48
|
|
MS48
|
|
H3152
|
240
|
|
|
260
|
330
|
190
|
49
|
T260×4
|
22.5
|
A3152
|
KM52
|
|
MS52
|
|
H3156
|
260
|
|
|
280
|
350
|
195
|
51
|
T280×4
|
25
|
A3156
|
KM56
|
|
MS56
|
|
H3160
|
280
|
|
|
300
|
380
|
208
|
53
|
T300×4
|
30
|
A3160
|
KM60
|
|
MS60
|
|
H3164
|
300
|
|
|
320
|
400
|
226
|
56
|
T320×5
|
35
|
A3164
|
KM64
|
|
MS64
|
|
H3168
|
320
|
|
|
340
|
440
|
254
|
72
|
T340×5
|
|
A3168
|
KM68
|
|
MS68
|
|
H3172
|
340
|
|
|
360
|
460
|
259
|
75
|
T360×5
|
|
A3172
|
KM72
|
|
MS72
|
|
H3176
|
360
|
|
|
380
|
490
|
264
|
77
|
T380×5
|
|
A3176
|
KM76
|
|
MS76
|
|
H3180
|
380
|
|
|
400
|
520
|
272
|
82
|
T400×5
|
|
A3180
|
KM80
|
|
MS80
|
|
H3184
|
400
|
|
|
420
|
540
|
304
|
90
|
T420×5
|
|
A3184
|
KM84
|
|
MS84
|
|
H3188
|
410
|
|
|
440
|
560
|
307
|
90
|
T440×5
|
|
A3188
|
KM88
|
|
MS88
|
|
H3192
|
430
|
|
|
460
|
580
|
326
|
95
|
T460×5
|
|
A3192
|
KM92
|
|
MS92
|
|
H3196
|
450
|
|
|
480
|
620
|
335
|
95
|
T480×5
|
|
A3196
|
KM96
|
|
MS96
|
