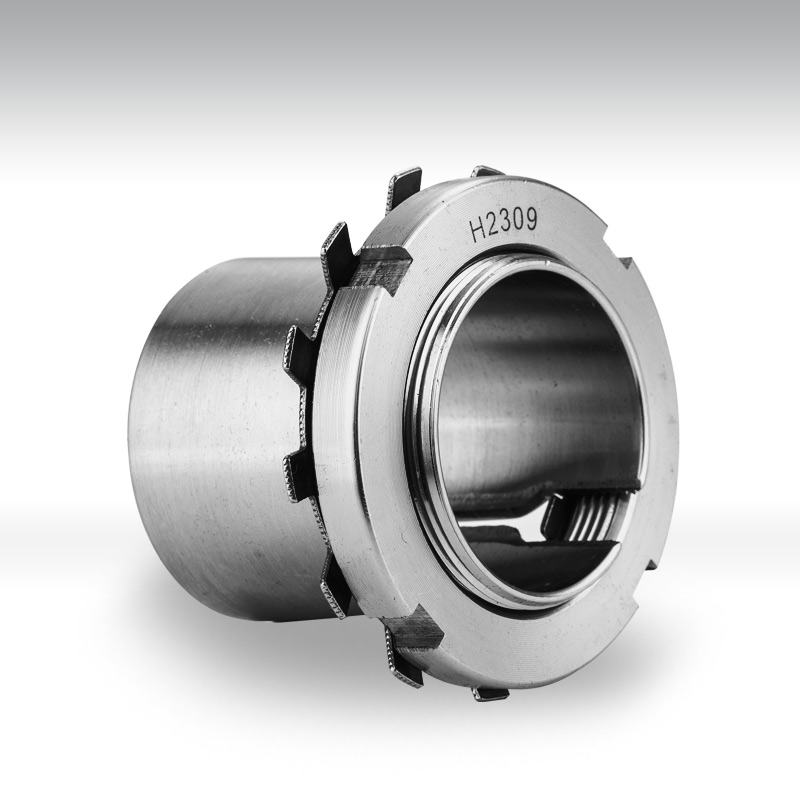

H3000
|
Adapter
|
Shaft d1
|

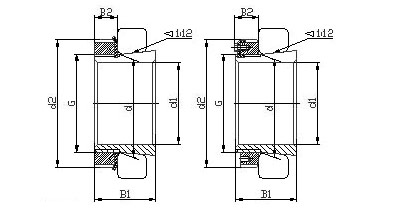

Dimensions(mm)
|
Weight
|
Composition
|
|||||||||
|
Sleeve
|
H
|
HE
|
HA
|
d
|
d2
|
B1
|
B2
|
G
|
(kg)
|
Sleeve
|
Lock nut
|
Lock washer
|
Lock card
|
|
|
mm
|
in
|
in
|
|
|||||||||
|
H3024
|
110
|
4-1/4
|
4-3/16
|
120
|
145
|
72
|
22
|
M120×2
|
1.95
|
A3024
|
KML24
|
MBL24
|
|
|
H3026
|
115
|
4-1/2
|
4-7/16
|
130
|
155
|
80
|
23
|
M130×2
|
2.85
|
A3026
|
KML26
|
MBL26
|
|
|
H3028
|
125
|
5
|
4-15/16
|
140
|
165
|
82
|
24
|
M140×2
|
3.15
|
A3028
|
KML28
|
MBL28
|
|
|
H3030
|
135
|
5-1/4
|
5-3/16
|
150
|
180
|
87
|
26
|
M150×2
|
3.9
|
A3030
|
KML30
|
MBL30
|
|
|
H3032
|
140
|
5-1/2
|
5-7/16
|
160
|
190
|
93
|
28
|
M160×3
|
5.2
|
A3032
|
KML32
|
MBL32
|
|
|
H3034
|
150
|
6
|
5-15/16
|
170
|
200
|
101
|
29
|
M170×3
|
6
|
A3034
|
KML34
|
MBL34
|
|
|
H3036
|
160
|
6-1/2
|
6-7/16
|
180
|
210
|
109
|
30
|
M180×3
|
6.85
|
A3036
|
KML36
|
MBL36
|
|
|
H3038
|
170
|
6-3/4
|
6-15/16
|
190
|
220
|
112
|
31
|
M190×3
|
7.45
|
A3038
|
KML38
|
MBL38
|
|
|
H3040
|
180
|
7
|
7-3/16
|
200
|
240
|
120
|
32
|
M200×3
|
9.2
|
A3040
|
KML40
|
MBL40
|
|
|
H3044
|
200
|
|
7-15/16
|
220
|
260
|
126
|
41
|
T220×4
|
10.5
|
A3044
|
KML44
|
|
MSL44
|
|
H3048
|
220
|
|
8-15/16
|
240
|
290
|
133
|
46
|
T240×4
|
13
|
A3048
|
KML48
|
|
MSL48
|
|
H3052
|
240
|
|
9-7/16
|
260
|
310
|
145
|
46
|
T260×4
|
15.5
|
A3052
|
KML52
|
|
MSL52
|
|
H3056
|
260
|
|
40375
|
280
|
330
|
152
|
50
|
T280×4
|
17.5
|
A3056
|
KML56
|
|
MSL56
|
|
H3060
|
280
|
|
10-15/16
|
300
|
360
|
168
|
54
|
T300×4
|
23
|
A3060
|
KML60
|
|
MSL60
|
|
H3064
|
300
|
|
11-15/16
|
320
|
380
|
171
|
55
|
T320×5
|
24.5
|
A3064
|
KML64
|
|
MSL64
|
|
H3068
|
320
|
|
12-7/16
|
340
|
400
|
187
|
58
|
T340×5
|
28.5
|
A3068
|
KML68
|
|
MSL68
|
|
H3072
|
340
|
|
13-7/16
|
360
|
420
|
188
|
58
|
T360×5
|
30.5
|
A3072
|
KML72
|
|
MSL72
|
|
H3076
|
360
|
|
13-15/16
|
380
|
450
|
193
|
62
|
T380×5
|
36
|
A3076
|
KML76
|
|
MSL76
|
|
H3080
|
380
|
|
|
400
|
470
|
210
|
66
|
T400×5
|
41.5
|
A3080
|
KML80
|
|
MSL80
|
|
H3084
|
400
|
|
|
420
|
490
|
212
|
66
|
T420×5
|
43.5
|
A3084
|
KML84
|
|
MSL84
|
|
H3088
|
410
|
|
|
440
|
520
|
228
|
77
|
T440×5
|
65.2
|
A3088
|
KML88
|
|
MSL88
|
|
H3092
|
430
|
|
|
460
|
540
|
234
|
77
|
T460×5
|
69.5
|
A3092
|
KML92
|
|
MSL92
|
|
H3096
|
450
|
|
|
480
|
560
|
237
|
77
|
T480×5
|
73.5
|
A3096
|
KML96
|
|
MSL96
|
