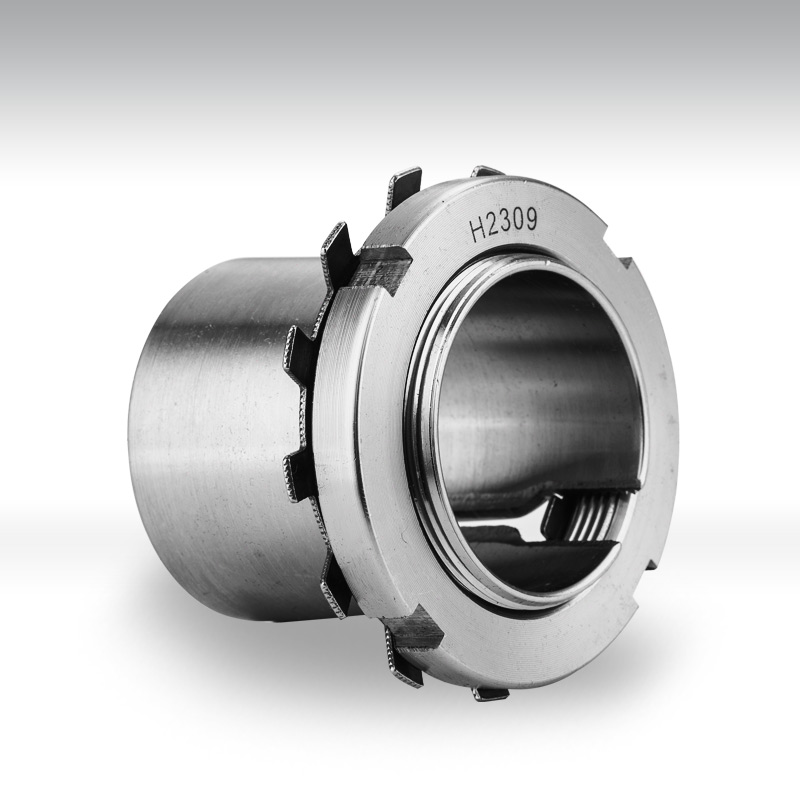

H300
|
Adapter
|
Shaftd1
|

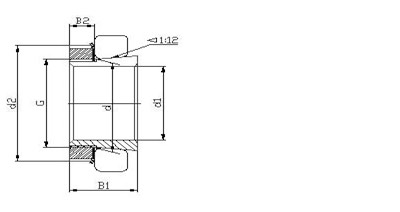

Dimensions(mm)
|
Weight
|
Composition
|
|||||||||
|
Sleeve
|
HS
|
HA
|
HE
|
H
|
d
|
d2
|
B1
|
B2
|
G
|
(kg)
|
Sleeve
|
Lock nut
|
Lock washer
|
|
|
in
|
in
|
in
|
mm
|
|
||||||||
|
H304
|
|
|
|
17
|
20
|
32
|
28
|
7
|
M20x1
|
0.045
|
A304
|
KM4
|
MB04
|
|
H305
|
7/8
|
13/16
|
3/4
|
20
|
25
|
38
|
29
|
8
|
M25x1.5
|
0.075
|
A305
|
KM5
|
MB05
|
|
H306
|
7/8
|
15/16
|
1
|
25
|
30
|
45
|
31
|
8
|
M30x1.5
|
0.11
|
A306
|
KM6
|
MB06
|
|
H307
|
1-1/8
|
1-3/16
|
1-1/4
|
30
|
35
|
52
|
35
|
9
|
M35x1.5
|
0.14
|
A307
|
KM7
|
MB07
|
|
H308
|
1-3/8
|
1-5/16
|
1-1/4
|
35
|
40
|
58
|
36
|
10
|
M40x1.5
|
0.19
|
A308
|
KM8
|
MB08
|
|
H309
|
1-5/8
|
1-7/16
|
1-1/2
|
40
|
45
|
65
|
39
|
11
|
M45x1.5
|
0.25
|
A309
|
KM9
|
MB09
|
|
H310
|
1-5/8
|
1-11/16
|
1-3/4
|
45
|
50
|
70
|
42
|
12
|
M50x1.5
|
0.3
|
A310
|
KM10
|
MB10
|
|
H311
|
1-7/8
|
1-15/16
|
2
|
50
|
55
|
75
|
45
|
12
|
M55x2
|
0.35
|
A311
|
KM11
|
MB11
|
|
H312
|
2-1/8
|
2-1/16
|
2-1/4
|
55
|
60
|
80
|
47
|
13
|
M60x2
|
0.39
|
A312
|
KM12
|
MB12
|
|
H313
|
2-3/8
|
2-3/16
|
2-1/4
|
60
|
65
|
85
|
50
|
14
|
M65x2
|
0.46
|
A313
|
KM13
|
MB13
|
|
H314
|
|
|
|
60
|
70
|
92
|
52
|
14
|
M70x2
|
0.72
|
A314
|
KM14
|
MB14
|
|
H315
|
2-5/8
|
2-7/16
|
2-1/2
|
65
|
75
|
98
|
55
|
15
|
M75x2
|
0.83
|
A315
|
KM15
|
MB15
|
|
H316
|
2-7/8
|
2-11/16
|
2-3/4
|
70
|
80
|
105
|
59
|
17
|
M80x2
|
1
|
A316
|
KM16
|
MB16
|
|
H317
|
|
2-15/16
|
3
|
75
|
85
|
110
|
63
|
18
|
M85x2
|
1.2
|
A317
|
KM17
|
MB17
|
|
H318
|
3-1/8
|
3-3/16
|
3-1/4
|
80
|
90
|
120
|
65
|
18
|
M90x2
|
1.35
|
A318
|
KM18
|
MB18
|
|
H319
|
|
3-5/16
|
3-1/4
|
85
|
95
|
125
|
68
|
19
|
M95x2
|
1.55
|
A319
|
KM19
|
MB19
|
|
H320
|
|
3-7/16
|
3-1/2
|
90
|
100
|
130
|
71
|
20
|
M100x2
|
1.7
|
A320
|
KM20
|
MB20
|
|
H321
|
|
|
|
95
|
105
|
140
|
74
|
20
|
M105x2
|
1.95
|
A321
|
KM21
|
MB21
|
|
H322
|
|
3-15/16
|
4
|
100
|
110
|
145
|
77
|
21
|
M110x2
|
2.2
|
A322
|
KM22
|
MB22
|
