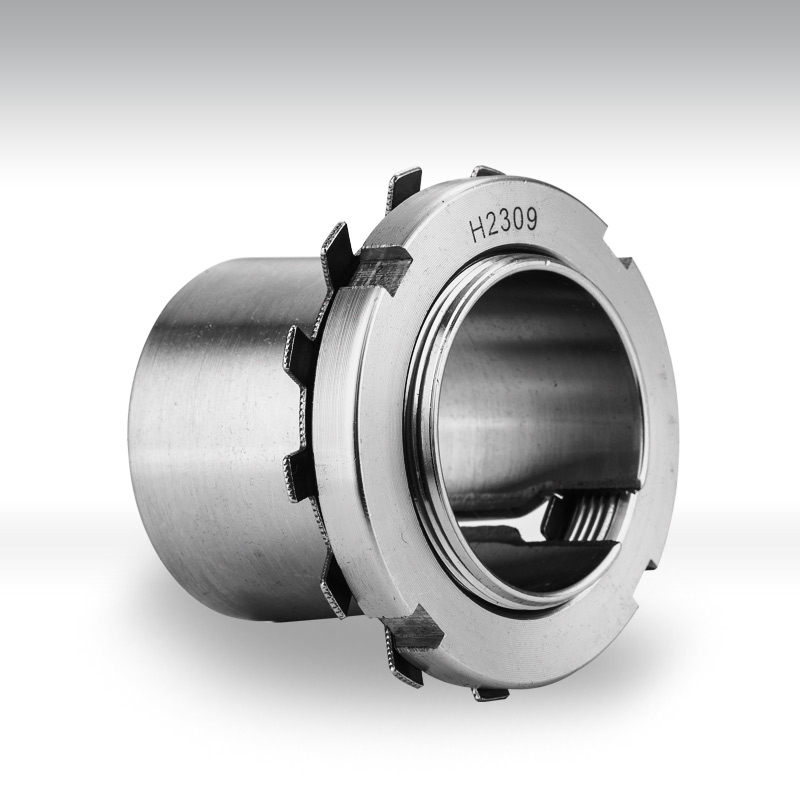

H200
|
Adapter
|
Shaft d1
|

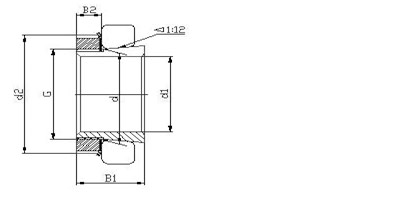

Dimensions(mm)
|
Weight
|
Composition
|
|||||||||
|
Sleeve
|
HS
|
HA
|
HE
|
H
|
d
|
d2
|
B1
|
B2
|
G
|
(kg)
|
Sleeve
|
Lock nut
|
Lock washer
|
|
|
in
|
in
|
in
|
mm
|
|
||||||||
|
H204
|
|
|
|
17
|
20
|
32
|
24
|
7
|
M20x1
|
0.041
|
A204
|
KM4
|
MB04
|
|
H205
|
7/8
|
13/16
|
3/4
|
20
|
25
|
38
|
26
|
8
|
M25x1.5
|
0.07
|
A205
|
KM5
|
MB05
|
|
H206
|
7/8
|
15/16
|
1
|
25
|
30
|
45
|
27
|
8
|
M30x1.5
|
0.1
|
A206
|
KM6
|
MB06
|
|
H207
|
1-1/8
|
1-3/16
|
1-1/4
|
30
|
35
|
52
|
29
|
9
|
M35x1.5
|
0.13
|
A207
|
KM7
|
MB07
|
|
H208
|
1-3/8
|
1-5/16
|
1-1/4
|
35
|
40
|
58
|
31
|
10
|
M40x1.5
|
0.17
|
A208
|
KM8
|
MB08
|
|
H209
|
1-5/8
|
1-7/16
|
1-1/2
|
40
|
45
|
65
|
33
|
11
|
M45x1.5
|
0.23
|
A209
|
KM9
|
MB09
|
|
H210
|
1-5/8
|
1-11/16
|
1-3/4
|
45
|
50
|
70
|
35
|
12
|
M50x1.5
|
0.27
|
A210
|
KM10
|
MB10
|
|
H211
|
1-7/8
|
1-15/16
|
2
|
50
|
55
|
75
|
37
|
12
|
M55x2
|
0.31
|
A211
|
KM11
|
MB11
|
|
H212
|
2-1/8
|
2-1/16
|
2-1/4
|
55
|
60
|
80
|
38
|
13
|
M60x2
|
0.35
|
A212
|
KM12
|
MB12
|
|
H213
|
2-3/8
|
2-3/16
|
2-1/4
|
60
|
65
|
85
|
40
|
14
|
M65x2
|
0.4
|
A213
|
KM13
|
MB13
|
|
H214
|
|
|
|
60
|
70
|
92
|
41
|
14
|
M70x2
|
0.6
|
A214
|
KM14
|
MB14
|
|
H215
|
2-5/8
|
2-7/16
|
2-1/2
|
65
|
75
|
98
|
43
|
15
|
M75x2
|
0.71
|
A215
|
KM15
|
MB15
|
|
H216
|
2-7/8
|
2-11/16
|
2-3/4
|
70
|
80
|
105
|
46
|
17
|
M80x2
|
0.88
|
A216
|
KM16
|
MB16
|
|
H217
|
|
2-15/16
|
3
|
75
|
85
|
110
|
50
|
18
|
M85x2
|
1.02
|
A217
|
KM17
|
MB17
|
|
H218
|
3-1/8
|
3-3/16
|
3-1/4
|
80
|
90
|
120
|
52
|
18
|
M90x2
|
1.2
|
A218
|
KM18
|
MB18
|
|
H219
|
|
3-5/16
|
3-1/4
|
85
|
95
|
125
|
55
|
19
|
M95x2
|
1.35
|
A219
|
KM19
|
MB19
|
|
H220
|
|
3-7/16
|
3-1/2
|
90
|
100
|
130
|
58
|
20
|
M100x2
|
1.5
|
A220
|
KM20
|
MB20
|
|
H221
|
|
|
|
95
|
105
|
140
|
60
|
20
|
M105x2
|
1.7
|
A221
|
KM21
|
MB21
|
|
H222
|
|
3-15/16
|
4
|
100
|
110
|
145
|
63
|
21
|
M110x2
|
1.9
|
A222
|
KM22
|
MB22
|
