GIHO-K..DO

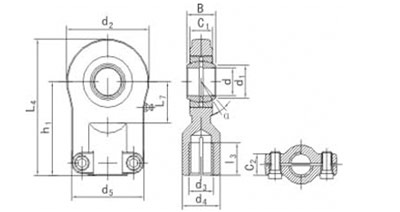

Rod end housing with right or left-hand female thread.It is made up of a radial spherical plain bearing GE..ES or GE..ES 2RS and rod end housing.
With locking slot and nut.
Rod end housing with a lubricating hole or grease nipple.
|
Bearing number
|
Dimenisions mm
|
Load ratings kN
|
Weight
|
||||||||||||||
|
d
|
d3
|
d4
|
l3
|
B
|
C1
|
d2
|
L7
|
h1
|
L4
|
d5
|
d1
|
C2
|
a°
|
|
|
≈Kg
|
|
|
|
6H
|
|
min
|
|
|
|
min
|
|
|
|
|
|
≈
|
Dynamic
|
Static
|
|
|
|
GIHO-K12DO*
|
12
|
M10x1.25
|
17
|
15
|
10
|
8
|
35
|
16
|
42
|
59.5
|
40
|
15
|
13
|
11
|
10.8
|
17
|
0.12
|
|
GIHO-K16DO
|
16
|
M12x1.25
|
21
|
17
|
14
|
11
|
45
|
20
|
48
|
70.5
|
45
|
20.7
|
13
|
10
|
21.1
|
28.5
|
0.22
|
|
GIHO-K20DO
|
20
|
M14x1.5
|
25
|
19
|
16
|
13
|
55
|
25
|
58
|
85.5
|
55
|
24.2
|
17
|
9
|
30
|
42.5
|
0.43
|
|
GIHO-K25DO
|
25
|
M16x1.5
|
30
|
23
|
20
|
17
|
65
|
30
|
68
|
100.5
|
62
|
29.3
|
17
|
7
|
48
|
67
|
0.67
|
|
GIHO-K30DO
|
30
|
M20x1.5
|
36
|
29
|
22
|
19
|
80
|
35
|
85
|
125
|
77
|
34.2
|
19
|
6
|
62
|
108
|
1.25
|
|
GIHO-K40DO
|
40
|
M27x2.0
|
45
|
37
|
28
|
23
|
100
|
45
|
105
|
155
|
90
|
45
|
23
|
7
|
100
|
156
|
2.16
|
|
GIHO-K50DO
|
50
|
M33x2.0
|
55
|
46
|
35
|
30
|
120
|
58
|
130
|
190
|
105
|
55.9
|
30
|
6
|
156
|
245
|
3.9
|
|
GIHO-K60DO
|
60
|
M42x2.0
|
68
|
57
|
44
|
38
|
160
|
68
|
150
|
230
|
134
|
66.8
|
38
|
6
|
245
|
380
|
7.15
|
|
GIHO-K80DO
|
80
|
M48x2.0
|
90
|
64
|
55
|
47
|
205
|
82
|
185
|
287.5
|
156
|
89.4
|
47
|
6
|
400
|
585
|
15
|
|
GIHO-K100DO
|
100
|
M64x3.0
|
110
|
86
|
70
|
55
|
240
|
116
|
240
|
360
|
190
|
109.5
|
55
|
7
|
610
|
865
|
27.3
|
