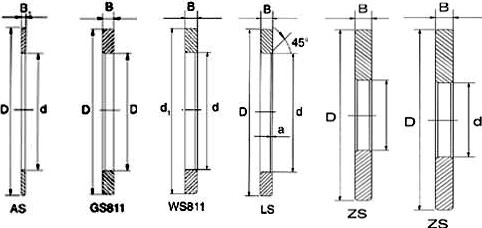

Axial bearing washers

Shaft Diameter 轴径	Bearing Washer 垫	Weight重量	Housing Locating Washer 定位座圈	Weight重量	Boundary Dimensions 外形尺寸


					d	D1	D	B1	B
		g		g	mm
4	AS0414	1			4		14	1
5	AS0515	1			5		15	1
6	AS0614	1			6		14	0.8
6	AS0619	2			6		19	1	2.75
8	AS0821	2			8		21	1	2.75
10	AS1024	3			10		24	1	2.75
12	AS1226	3			12		26	1	2.75
15	AS1528	3	GS81102	8	15	16	28	1	2.75
17	AS1722/05	3			17		22	0.5
17	AS1730	4	GS81103	9	17	18	30	1	2.75
20	AS2035	5	GS81104	12	20	21	35	1	2.75
25	AS2542	7	GS81105	19	25	26	42	1	3
30	AS3047	8	GS81106	20	30	32	47	1	3
35	AS3552	9	GS81107	27	35	37	52	1	3.5
40	AS4060	12	GS81108	37	40	42	60	1	3.5
45	AS4565	13	GS81109	47	45	47	65	1	4
50	AS5070	14	GS81110	51	50	52	70	1	4
55	AS5578	18	GS81111	82	55	57	78	1	5
60	AS6085	22	GS81112	92	60	62	85	1	4.75
65	AS6590	24	GS81113	110	65	67	90	1	5.25
70	AS7095	25	GS81114	120	70	72	95	1	5.25
75	AS75100	27	GS81115	136	75	77	100	1	5.75
80	AS80105	28	GS81116	144	80	82	105	1	5.75
85	AS85110	29	GS81117	151	85	87	110	1	5.75
90	AS90120	39	GS81118	225	90	92	120	1	6.5
100	AS100135	50	GS81120	350	100	102	135	1	7
110	AS110145	55	GS81122	385	110	112	145	1	7
120	AS120155	59	GS81124	415	120	122	155	1	7
130	AS130170	65	GS81128	643	130	132	170	1	9
140	AS140180	79	GS81130	749	140	142	180	1	9.5
150	AS150190	84	GS81132	796	150	152	190	1	9.5
160	AS160200	89	GS81134	842	160	162	200	1	9.5

Shaft Diameter 轴径	Bearing Washer 垫圈	Weight重量	Housing Locating Washer 定位座圈	Weight重量	Boundary Dimensions 外形尺寸


					d	D	d1	B
		g		g	mm
6			LS0619	4	6	19		2.75
8			LS0821	4	8	21		2.75
10			LS1024	7	10	24		2.75
12			LS1226	8	12	26		2.75
15	WS81102	9	LS1528	9	15	28	28	2.75
17	WS81103	9	LS1730	9	17	30	30	2.75
20	WS81104	13	LS2035	13	20	35	35	2.75
25	WS81105	19	LS2542	19	25	42	42	3
30	WS81106	22	LS3047	22	30	47	47	3
35	WS81107	29	LS3552	29	35	52	52	3.5
40	WS81108	40	LS4060	40	40	60	60	3.5
45	WS81109	50	LS4565	50	45	65	65	4
50	WS81110	55	LS5070	55	50	70	70	4
55	WS81111	88	LS5578	88	55	78	78	5
60	WS81112	97	LS6085	97	60	85	85	4.75
65	WS81113	115	LS6590	115	65	90	90	5.25
70	WS81114	123	LS7095	123	70	95	95	5.25
75	WS81115	142	LS75100	142	75	100	100	5.75
80	WS81116	151	LS80105	151	80	105	105	5.75
85	WS81117	159	LS85110	159	85	110	110	5.75
90	WS81118	234	LS90120	234	90	120	120	6.5
100	WS81120	350	LS100135	350	100	135	135	7
110	WS81122	385	LS110145	385	110	145	145	7
120	WS81124	415	LS120155	415	120	155	155	7
130	WS81126	663	LS130170	663	130	170	170	9
140	WS81128	749	LS140180	749	140	180	178	9.5
150	WS81130	796	LS150190	796	150	190	188	9.5
160	WS81132	842	LS160200	842	160	200	198	9.5

Shaft Diameter 轴径	Designation of Center Washer中圈	Weight重量	Boundary Dimensions 外形尺寸


			d	D	B
		g	mm
15	ZS1127	21	11	27	5.5
17	ZS1329	23	13	29	5.5
20	ZS1634	31	16	34	5.5
25	ZS2141	45	21	41	6
30	ZS2646	60	26	46	7
35	ZS3151	78	31	51	8
40	ZS3159	125	31	59	8
45	ZS3664	156	36	64	9
50	ZS4169	191	41	69	10
55	ZS4677	235	46	77	10
60	ZS5184	316	51	84	11.5
65	ZS5689	360	56	89	12
70	ZS5694	440	56	94	12.5
75	ZS6199	470	61	99	12.5
80	ZS66104	500	66	104	12.5
85	ZS71109	593	71	109	14.5
90	ZS76119	806	76	119	16
100	ZS86134	1180	86	134	18
110	ZS96144	1430	96	144	20
120	ZS101154	1830	101	154	22
130	ZS111169	2210	111	169	22
140	ZS121179	2460	121	179	23
150	ZS131189	2740	131	189	24
160	ZS141199	3030	141	199	25

Shaft Diameter	Designation of Center Washer	Mass	Boundary Dimensions


			d	D	B
		g	mm
15	ZS1634	31	16	34	5.5
20	ZS2141	45	21	41	6
25	ZS2646	60	26	46	7
30	ZS3151	78	31	51	8
35	ZS3664	156	36	64	9
40	ZS4169	191	41	69	10
45	ZS4677	235	46	77	10
50	ZS5184	316	51	84	11.5
55	ZS5689	360	56	89	12
60	ZS6199	470	61	99	12.5
65	ZS66104	500	66	104	12.5
70	ZS71109	593	71	109	14.5
75	ZS76119	806	76	119	16
85	ZS86134	1180	86	134	18
100	ZS101154	1830	101	154	22
110	ZS111169	2210	111	169	22
120	ZS121179	2460	121	179	23
130	ZS131189	2740	131	189	24
140	ZS141199	3030	141	199	25
150	ZS151214	3830	151	214	27
160	ZS161224	4350	161	224	29
