AH3200
|
Adapter
|

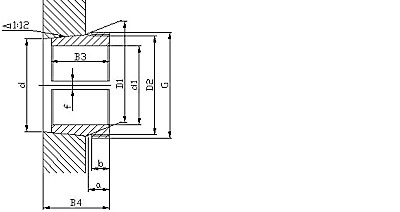

Dimensions(mm)
|
Weight
|
Lock nut
|
|||||||||
|
Sleeve
|
d1
|
d
|
B3
|
B4
|
D1
|
D2
|
a
|
b
|
f
|
G
|
(kg)
|
|
|
AH3218
|
85
|
90
|
63
|
67
|
94.5
|
94
|
13
|
10
|
3
|
M100x2
|
0.576
|
KM20
|
|
AH3219
|
90
|
95
|
67
|
71
|
99.75
|
99
|
14
|
11
|
4
|
M105x2
|
0.65
|
KM21
|
|
AH3220
|
95
|
100
|
73
|
77
|
105.3
|
104.5
|
14
|
11
|
4
|
M110x2
|
0.767
|
KM22
|
|
AH3222
|
105
|
110
|
82
|
86
|
116
|
115.5
|
14
|
11
|
4
|
M125x2
|
0.88
|
KM25
|
|
AH3224
|
115
|
120
|
90
|
94
|
126.5
|
126
|
16
|
13
|
4
|
M135x2
|
1.11
|
KM27
|
|
AH3226
|
125
|
130
|
98
|
102
|
137
|
136.5
|
18
|
15
|
4
|
M145x2
|
1.58
|
KM29
|
|
AH3228
|
135
|
140
|
104
|
109
|
147.6
|
147
|
18
|
15
|
4
|
M155x3
|
1.84
|
KM31
|
|
AH3230
|
145
|
150
|
114
|
119
|
158.3
|
157.5
|
20
|
17
|
4
|
M165x3
|
2.22
|
KM33
|
|
AH3232
|
150
|
160
|
124
|
130
|
168.9
|
167
|
23
|
20
|
5
|
M180x3
|
4.08
|
KM36
|
|
AH3234
|
160
|
170
|
134
|
140
|
179.4
|
178
|
27
|
24
|
5
|
M190x3
|
4.8
|
KM38
|
|
AH3236
|
170
|
180
|
140
|
146
|
189.9
|
188
|
27
|
24
|
5
|
M200x3
|
5.32
|
KM40
|
|
AH3238
|
180
|
190
|
145
|
152
|
200.1
|
199
|
31
|
25
|
5
|
T210x4
|
5.9
|
KM42
|
|
AH3240
|
190
|
200
|
153
|
160
|
210.8
|
209
|
31
|
25
|
5
|
T220x4
|
6.68
|
KM44
|
|
AH3260
|
280
|
300
|
228
|
236
|
316.3
|
315
|
40
|
34
|
6
|
T330x5
|
26
|
KM66
|
|
AH3264
|
300
|
320
|
246
|
254
|
337.7
|
336
|
42
|
36
|
6
|
T350x5
|
30.6
|
KM70
|
|
AH3268
|
320
|
340
|
264
|
273
|
359.1
|
358
|
44
|
38
|
6
|
T370x5
|
35.4
|
KM74
|
|
AH3272
|
340
|
360
|
274
|
283
|
380
|
378
|
46
|
40
|
6
|
T400x5
|
41.5
|
KM80
|
|
AH3276
|
360
|
380
|
284
|
294
|
400.5
|
399
|
48
|
42
|
6
|
T420x5
|
45.6
|
KM84
|
|
AH3280
|
380
|
400
|
302
|
312
|
421.8
|
420
|
50
|
44
|
6
|
T440x5
|
51.7
|
KM88
|
|
AH3284
|
400
|
420
|
321
|
331
|
443.3
|
442
|
52
|
46
|
8
|
T460x5
|
58.9
|
KM92
|
|
AH3288
|
420
|
440
|
330
|
341
|
463.9
|
462
|
54
|
48
|
8
|
T480x5
|
63.8
|
KM96
|
|
AH3292
|
440
|
460
|
349
|
360
|
485.3
|
484
|
56
|
50
|
8
|
T510x6
|
74.5
|
KM102
|
|
AH3296
|
460
|
480
|
364
|
376
|
506.5
|
505
|
58
|
52
|
8
|
T530x6
|
82.1
|
KM106
|
