AH300
|
Adapter Sleeve
|

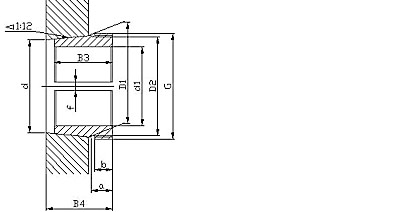

Dimensions(mm)
|
Weight (kg)
|
Lock nut
|
|||||||||
|
d1
|
d
|
B3
|
B4
|
D1
|
D2
|
a
|
b
|
f
|
G
|
|||
|
AH308
|
35
|
40
|
29
|
32
|
41.92
|
41
|
9
|
6
|
2
|
M45x1.5
|
0.09
|
KM09
|
|
AH309
|
40
|
45
|
31
|
34
|
47.08
|
46.5
|
9
|
6
|
2
|
M50x1.5
|
0.109
|
KM10
|
|
AH310
|
45
|
50
|
35
|
38
|
52.33
|
51.5
|
10
|
7
|
2
|
M55x2
|
0.137
|
KM11
|
|
AH311
|
50
|
55
|
37
|
40
|
57.5
|
56.5
|
10
|
7
|
3
|
M60x2
|
0.161
|
KM12
|
|
AH312
|
55
|
60
|
40
|
43
|
62.67
|
61.5
|
11
|
8
|
3
|
M65x2
|
0.189
|
KM13
|
|
AH313
|
60
|
65
|
42
|
45
|
67.83
|
67
|
11
|
8
|
3
|
M75x2
|
0.253
|
KM15
|
|
AH314
|
65
|
70
|
43
|
47
|
73
|
72.5
|
11
|
8
|
3
|
M80x2
|
0.28
|
KM16
|
|
AH315
|
70
|
75
|
45
|
49
|
78.17
|
77.5
|
11
|
8
|
3
|
M85x2
|
0.313
|
KM17
|
|
AH316
|
75
|
80
|
48
|
52
|
83.42
|
82.5
|
11
|
8
|
3
|
M90x2
|
0.365
|
KM18
|
|
AH317
|
80
|
85
|
52
|
56
|
88.67
|
88
|
12
|
9
|
3
|
M95x2
|
0.429
|
KM19
|
|
AH318
|
85
|
90
|
53
|
57
|
93.75
|
93
|
12
|
9
|
3
|
M100x2
|
0.461
|
KM20
|
|
AH319
|
90
|
95
|
57
|
61
|
99
|
98.5
|
13
|
10
|
4
|
M105x2
|
0.532
|
KM21
|
|
AH320
|
95
|
100
|
59
|
63
|
104.2
|
103.5
|
13
|
10
|
4
|
M110x2
|
0.582
|
KM22
|
|
AH322
|
105
|
110
|
63
|
67
|
114.3
|
113.5
|
15
|
12
|
4
|
M120x2
|
0.663
|
KM24
|
|
AH324
|
115
|
120
|
69
|
73
|
124.8
|
124
|
16
|
13
|
4
|
M130x2
|
0.875
|
KM26
|
|
AH326
|
125
|
130
|
74
|
78
|
135.1
|
134.5
|
17
|
14
|
4
|
M140x2
|
1.03
|
KM28
|
|
AH328
|
135
|
140
|
77
|
82
|
145.4
|
144.5
|
17
|
14
|
4
|
M150x2
|
1.15
|
KM30
|
|
AH330
|
145
|
150
|
83
|
88
|
155.8
|
155
|
18
|
15
|
4
|
M165x3
|
1.55
|
KM33
|
|
AH332
|
150
|
160
|
88
|
93
|
166.2
|
165
|
19
|
16
|
5
|
M180x3
|
2.73
|
KM36
|
|
AH334
|
160
|
170
|
93
|
98
|
176.5
|
175
|
20
|
17
|
5
|
M190x3
|
3.2
|
KM38
|
