AH2300
|
Adapter
|

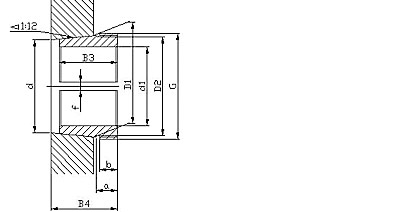

Dimensions(mm)
|
Weight
|
Lock nut
|
|||||||||
|
Sleeve
|
d1
|
d
|
B3
|
B4
|
D1
|
D2
|
a
|
b
|
f
|
G
|
(kg)
|
|
|
AH2308
|
35
|
40
|
40
|
43
|
42.76
|
42
|
10
|
7
|
2
|
M45x1.5
|
0.128
|
KM09
|
|
AH2309
|
40
|
45
|
44
|
47
|
48.08
|
47.5
|
10
|
7
|
2
|
M50x1.5
|
0.164
|
KM10
|
|
AH2310
|
45
|
50
|
50
|
53
|
53.5
|
52
|
12
|
9
|
2
|
M55x2
|
0.209
|
KM11
|
|
AH2311
|
50
|
55
|
54
|
57
|
58.67
|
57
|
13
|
10
|
3
|
M60x2
|
0.253
|
KM12
|
|
AH2312
|
55
|
60
|
58
|
61
|
63.92
|
62
|
14
|
11
|
3
|
M65x2
|
0.297
|
KM13
|
|
AH2313
|
60
|
65
|
61
|
64
|
69.08
|
68.5
|
15
|
12
|
3
|
M75x2
|
0.395
|
KM15
|
|
AH2314
|
65
|
75
|
64
|
68
|
74.42
|
73.5
|
15
|
12
|
3
|
M80x2
|
0.466
|
KM16
|
|
AH2315
|
70
|
80
|
68
|
72
|
79.75
|
79
|
15
|
12
|
3
|
M85x2
|
0.534
|
KM17
|
|
AH2316
|
75
|
85
|
71
|
75
|
85
|
84.5
|
15
|
12
|
3
|
M90x2
|
0.597
|
KM18
|
|
AH2317
|
80
|
90
|
74
|
78
|
90.17
|
89.5
|
16
|
13
|
3
|
M95x2
|
0.69
|
KM19
|
|
AH2318
|
85
|
95
|
79
|
83
|
95.5
|
95
|
17
|
14
|
3
|
M100x2
|
0.779
|
KM20
|
|
AH2319
|
90
|
100
|
85
|
89
|
100.8
|
100
|
19
|
16
|
4
|
M105x2
|
0.886
|
KM21
|
|
AH2320
|
95
|
105
|
90
|
94
|
106.3
|
105.5
|
19
|
16
|
4
|
M110x2
|
0.998
|
KM22
|
|
AH2322
|
105
|
110
|
98
|
102
|
116.9
|
116
|
19
|
16
|
4
|
M125x2
|
1.35
|
KM25
|
|
AH2324
|
115
|
120
|
105
|
109
|
127.4
|
126.5
|
20
|
17
|
4
|
M135x2
|
1.6
|
KM27
|
|
AH2326
|
125
|
130
|
115
|
119
|
138.1
|
137.5
|
22
|
19
|
4
|
M145x2
|
1.97
|
KM29
|
|
AH2328
|
135
|
140
|
125
|
130
|
148.9
|
148
|
23
|
20
|
4
|
M155x3
|
2.33
|
KM31
|
|
AH2330
|
145
|
150
|
135
|
140
|
159.4
|
158.5
|
27
|
24
|
4
|
M165x3
|
2.82
|
KM33
|
|
AH2332
|
150
|
160
|
140
|
146
|
169.9
|
168
|
27
|
24
|
5
|
M180x3
|
4.72
|
KM36
|
|
AH2334
|
160
|
170
|
146
|
152
|
180.4
|
179
|
27
|
24
|
5
|
M190x3
|
5.25
|
KM38
|
|
AH2336
|
170
|
180
|
154
|
160
|
189.9
|
189
|
29
|
26
|
5
|
M200x3
|
5.83
|
KM40
|
|
AH2338
|
180
|
190
|
160
|
167
|
201.3
|
200
|
32
|
26
|
5
|
T210x4
|
6.63
|
KM42
|
|
AH2340
|
190
|
200
|
170
|
177
|
211.8
|
210
|
36
|
30
|
5
|
T220x4
|
7.54
|
KM44
|
|
AH2344
|
200
|
220
|
181
|
189
|
232.8
|
231
|
36
|
30
|
5
|
T240x4
|
13.5
|
KM48
|
|
AH2348
|
220
|
240
|
189
|
197
|
253.4
|
252
|
36
|
30
|
5
|
T260x4
|
15.5
|
KM52
|
|
AH2352
|
240
|
260
|
205
|
213
|
274.8
|
273
|
36
|
30
|
6
|
T290x4
|
19.6
|
KM58
|
|
AH2356
|
260
|
280
|
212
|
220
|
295.3
|
294
|
36
|
30
|
6
|
T310x5
|
21.6
|
KM62
|
