AH200
|
Adapter Sleeve
|

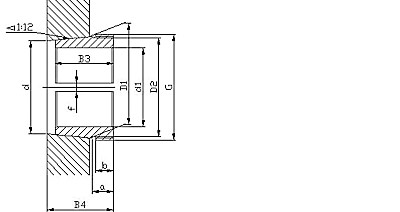

Dimensions(mm)
|
Weight (kg)
|
Lock nut
|
|||||||||
|
d1
|
d
|
B3
|
B4
|
D1
|
D2
|
a
|
b
|
f
|
G
|
|||
|
AH208
|
35
|
40
|
25
|
27
|
41.5
|
41
|
9
|
6
|
2
|
M45x1.5
|
0.081
|
KM09
|
|
AH209
|
40
|
45
|
26
|
29
|
46.67
|
46
|
9
|
6
|
2
|
M50x1.5
|
0.095
|
KM10
|
|
AH210
|
45
|
50
|
28
|
31
|
51.15
|
51
|
10
|
7
|
2
|
M55x2
|
0.115
|
KM11
|
|
AH211
|
50
|
55
|
29
|
32
|
56.83
|
56
|
10
|
7
|
3
|
M60x2
|
0.133
|
KM12
|
|
AH212
|
55
|
60
|
32
|
35
|
62
|
61.5
|
11
|
8
|
3
|
M65x2
|
0.162
|
KM13
|
|
AH213
|
60
|
65
|
32.5
|
36
|
67.08
|
66.5
|
11
|
8
|
3
|
M75x2
|
0.215
|
KM15
|
|
AH214
|
65
|
70
|
33.5
|
37
|
72.17
|
71.5
|
11
|
8
|
3
|
M80x2
|
0.25
|
KM16
|
|
AH215
|
70
|
75
|
34.5
|
38
|
77.25
|
76.5
|
11
|
8
|
3
|
M85x2
|
0.26
|
KM17
|
|
AH216
|
75
|
80
|
35.5
|
39
|
82.33
|
81.5
|
11
|
8
|
3
|
M90x2
|
0.285
|
KM18
|
|
AH217
|
80
|
85
|
38.5
|
42
|
87.5
|
87
|
12
|
9
|
3
|
M95x2
|
0.316
|
KM19
|
|
AH218
|
85
|
90
|
40
|
44
|
92.67
|
92
|
12
|
9
|
3
|
M100x2
|
0.352
|
KM20
|
|
AH219
|
90
|
95
|
43
|
47
|
97.83
|
97
|
13
|
10
|
4
|
M105x2
|
0.405
|
KM21
|
|
AH220
|
95
|
100
|
45
|
49
|
103
|
102.5
|
13
|
10
|
4
|
M110x2
|
0.483
|
KM22
|
|
AH222
|
105
|
110
|
50
|
54
|
113.3
|
112.5
|
14
|
11
|
4
|
M120x2
|
0.548
|
KM24
|
|
AH224
|
115
|
120
|
53
|
57
|
123.5
|
123
|
15
|
12
|
4
|
M130x2
|
0.62
|
KM26
|
|
AH226
|
125
|
130
|
53
|
57
|
133.5
|
133
|
15
|
12
|
4
|
M140x2
|
0.69
|
KM28
|
|
AH228
|
135
|
140
|
56
|
61
|
143.8
|
143
|
16
|
13
|
4
|
M150x2
|
0.76
|
KM30
|
|
AH230
|
145
|
150
|
60
|
65
|
154
|
153.5
|
17
|
14
|
4
|
M160x3
|
0.84
|
KM32
|
|
AH232
|
150
|
160
|
64
|
69
|
164.3
|
163
|
18
|
15
|
5
|
M170x3
|
0.93
|
KM34
|
|
AH234
|
160
|
170
|
69
|
74
|
174.6
|
173
|
19
|
16
|
5
|
M180x3
|
1.56
|
KM36
|
|
AH236
|
170
|
180
|
69
|
74
|
184.6
|
183
|
19
|
16
|
5
|
M190x3
|
2.21
|
KM38
|
|
AH238
|
180
|
190
|
73
|
78
|
194.6
|
193
|
23
|
17
|
5
|
T205x4
|
2.91
|
HML41
|
|
AH240
|
190
|
200
|
77
|
82
|
204.8
|
203
|
24
|
18
|
5
|
T215x4
|
3.72
|
HML43
|
|
AH244
|
200
|
220
|
85
|
91
|
225.6
|
224
|
24
|
18
|
5
|
T235x4
|
4.65
|
HML47
|
|
AH248
|
220
|
240
|
96
|
102
|
246.2
|
245
|
28
|
22
|
5
|
T260x4
|
5.34
|
HML52
|
|
AH252
|
240
|
260
|
105
|
111
|
266.8
|
265
|
29
|
23
|
6
|
T280x4
|
6.22
|
HML56
|
|
AH256
|
260
|
280
|
105
|
113
|
287
|
286
|
29
|
23
|
6
|
T300x4
|
7.18
|
HML60
|
