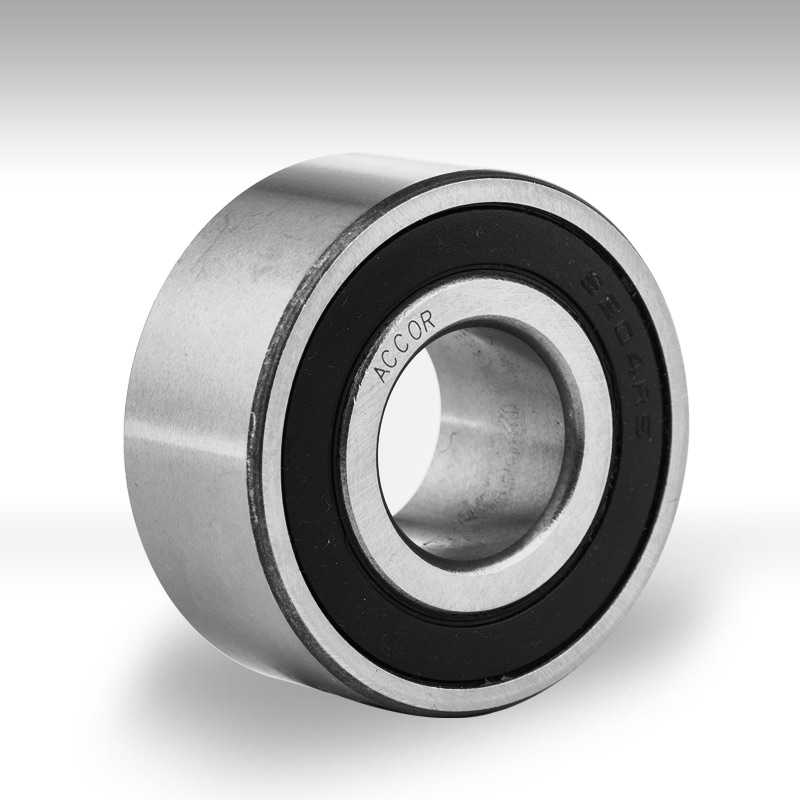

Double row deep groove ball bearings

Bearing No.	d	D	B	r (min.)	Basic Load Rating(KN)		Limiting Speed		Weight
					Dynamic	Static	Grease	Oil	Kg(pc)
					Cr	Cor	r/min	r/min	Kg(pc)
5200	10	30	14.3	0.6	6.95	3.80	14000	19000	0.049
5201	12	32	15.9	0.6	9.15	5.05	13000	17000	0.057
5202	15	35	15.9	0.6	10.0	6.05	11000	15000	0.064
5203	17	40	17.5	0.6	12.80	7.90	9900	13000	0.096
5204	20	47	20.6	1.0	19.00	12.10	8800	12000	0.153
5205	25	52	20.6	1.0	20.60	14.30	7300	9800	0.175
5206	30	62	23.8	1.0	28.60	20.40	6300	8400	0.286
5207	35	72	27.0	1.1	38.00	27.80	5500	7400	0.436
5208	40	80	30.2	1.1	42.50	32.50	4900	6600	0.590
5209	45	85	30.2	1.1	48.00	37.00	4400	5900	0.640
5210	50	90	30.2	1.1	51.00	42.00	4000	5300	0.689
5211	55	100	33.3	1.5	63.00	53.00	3600	4900	0.986
5212	60	110	36.5	1.5	71.50	58.50	3400	4500	1.27
5213	70	125	39.7	1.5	90.50	79.50	2900	3900	1.80
5215	75	130	41.3	1.5	90.00	80.50	2700	3600	1.90
5302	15	42	19	1.0	17.20	10.10	9900	13000	0.132
5303	17	47	22.2	1.0	20.40	12.10	9000	12000	0.181
5304	20	52	22.2	1.1	20.60	12.70	8000	11000	0.127
5305	25	62	25.4	1.1	30.50	20.50	6700	8900	0.362
5306	30	72	30.2	1.1	39.50	27.50	5700	7600	0.553
5307	35	80	34.9	1.5	49.50	35.00	5000	6600	0.776
5308	40	90	36.5	1.5	60.50	44.00	4400	5900	1.01
5309	45	100	39.7	1.5	72.50	54.00	4000	5300	1.340
5310	50	110	44.4	2.0	85.50	64.50	3600	4800	1.81
