51200

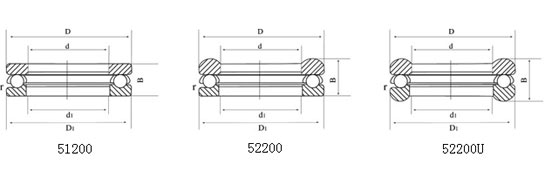

Bearing No.			Boundary Dimensions				Basic Load Ratings		Limiting Speed		Weight
Bearing No.			Boundary Dimensions				Basic Load Ratings		Limiting Speed		Weight
51000	53000	53000U	d	D	B	r min	Cr	Cor	Grease	Oil	51000	53000	53000U
51000	53000	53000U	mm	mm	mm	mm	KN	KN	rpm	rpm	kg	kg	kg
51202	53202	53202U	15	32	12	0.6	16.6	24.8	4900	7500	0.046	0.048	0.062
51203	53203	53203U	17	35	12	0.6	17.2	27.3	4900	7500	0.053	0.055	0.07
51204	53204	53204U	20	40	14	0.6	22.3	37.7	3900	6000	0.082	0.08	0.1
51205	53205	53205U	25	47	15	0.6	27.8	50.4	3600	5500	0.012	0.12	0.152
51206	53206	53206U	30	52	16	0.6	29.3	58.2	3400	5200	0.15	0.16	0.193
51207	53207	53207U	35	62	18	1	39.2	78.2	2900	4500	0.22	0.22	0.277
51208	53208	53208U	40	68	19	1	46.9	98.3	2700	4200	0.27	0.27	0.34
51209	53209	53209U	45	73	20	1	47.7	105	2600	4000	0.32	0.31	0.397
51210	53210	53210U	50	78	22	1	48.5	111	2300	3600	0.39	0.38	0.48
51211	53211	53211U	55	90	25	1	69.4	159	2100	3200	0.61	0.62	0.77
51212	53212	53212U	60	95	26	1	73.4	179	1900	3000	0.69	0.69	0.85
51213	53213	53213U	65	100	27	1	74.8	189	1900	2900	0.77	0.75	0.93
51214	53214	53214U	70	105	27	1	73.6	189	1800	2800	0.81	0.8	0.99
51215	53215	53215U	75	110	27	1	77.4	209	1800	2700	0.86	0.85	1.06
51216	53216	53216U	80	115	28	1	78.5	218	1700	2600	0.95	0.93	1.15
51217	53217	53217U	85	125	31	1	92.3	251	1500	2300	1.29	1.28	1.57
51218	53218	53218U	90	135	35	1.1	117	326	1400	2100	1.77	1.77	2.19
51220	53220	53220U	100	150	38	1.1	147	410	1200	1900	2.36	2.34	2.84
51222	53222	53222U	110	160	38	1.1	148	431	1200	1800	2.57	2.5	3.06
51224	53224	53224U	120	170	39	1.1	154	472	1100	1700	2.86	2.81	3.46
51226	53226	53226U	130	190	45	1.5	203	622	970	1500	4.09	3.98	4.88
51228	53228	53228U	140	200	46	1.5	215	669	940	1450	4.46	4.35	5.89
51230	53230	53230U	150	215	50	1.5	244	768	840	1300	5.64	5.45	7.14
51232	53232	53232U	160	225	51	1.5	247	803	810	1250	6.53	6.09	7.9
51305	53305	53305U	25	52	18	1	35.7	61.4	3100	4800	0.018	0.18	0.224
51306	53306	53306U	30	60	21	1	42.8	78.7	2700	4200	0.27	0.27	0.326
51307	53307	53307U	35	68	24	1	55.5	105	2400	3700	0.39	0.4	0.484
51308	53308	53308U	40	78	26	1	69.3	135	2100	3300	0.55	0.57	0.69
51309	53309	53309U	45	85	28	1	80	163	1900	3000	0.69	0.68	0.85
51310	53310	53310U	50	95	31	1.1	91.6	186	1800	2700	1	1.01	1.24
51311	53311	53311U	55	105	35	1.1	119	246	1600	2400	1.34	1.41	1.69
51312	53312	53312U	60	110	35	1.1	124	267	1500	2300	1.43	1.47	1.78
