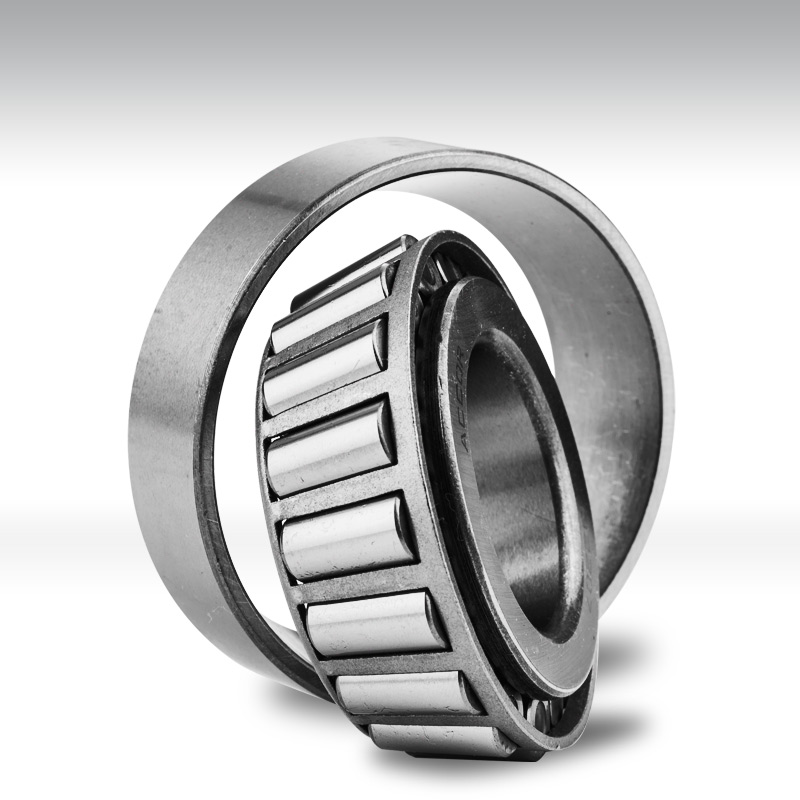

Single-row tapered roller bearings
|

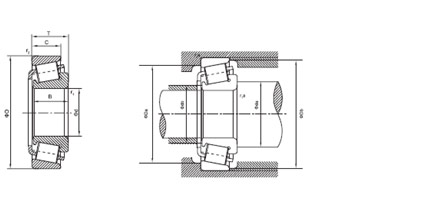

Principal Dimensions (mm) 基本尺寸
|
Basic Load Ratings (kN) 基本额定负荷
|
Limiting Speeds (r/min) 极限转速
|
Bearing Number 轴承代号
|
Weight (kg)重量
|
||||||||||
|
d
|
D
|
T
|
B
|
C
|
r1min
|
r2min
|
Cr
|
Cor
|
Grease
|
Oil
|
Cone内圈
|
Cup 外圈
|
Cone内圈
|
Cup外圈
|
|
15.875
|
42.862
|
14.288
|
14.288
|
9.525
|
1.5
|
1.5
|
17.3
|
17.7
|
8500
|
12000
|
11590
|
11520
|
0.06
|
0.04
|
|
17.462
|
39.878
|
13.843
|
14.605
|
10.668
|
1.3
|
1.3
|
22.5
|
22.5
|
10000
|
13000
|
LM11749
|
LM11710
|
0.055
|
0.028
|
|
19.050
|
45.237
|
15.494
|
16.637
|
12.065
|
1.3
|
1.3
|
28.5
|
28.9
|
9000
|
12000
|
LM11949
|
LM11910
|
0.081
|
0.044
|
|
19.050
|
49.225
|
18.034
|
19.05
|
14.288
|
1.3
|
1.3
|
37.5
|
37
|
8500
|
11000
|
09067
|
09195
|
0.115
|
0.065
|
|
19.050
|
39.992
|
12.014
|
11.153
|
9.525
|
1.0
|
1.3
|
14.9
|
15.7
|
9500
|
13000
|
A6075
|
A6157
|
0.037
|
0.031
|
|
19.050
|
49.225
|
21.209
|
19.050
|
17.462
|
1.3
|
1.5
|
37.5
|
37
|
8500
|
11000
|
09067
|
09196
|
0.115
|
0.085
|
|
19.050
|
49.225
|
23.020
|
21.539
|
17.462
|
1.5
|
3.5
|
37.5
|
37.0
|
8500
|
11000
|
09074
|
09194
|
0.124
|
0.082
|
|
20.638
|
49.225
|
19.845
|
19.845
|
15.875
|
1.5
|
1.5
|
36
|
37
|
8000
|
11000
|
12580
|
12520
|
0.114
|
0.067
|
|
21.430
|
50.005
|
17.526
|
18.288
|
13.970
|
1.3
|
1.3
|
38.5
|
40
|
8000
|
11000
|
M12649
|
M12610
|
0.115
|
0.059
|
|
22
|
45.237
|
15.494
|
16.637
|
12.065
|
1.3
|
1.3
|
29.2
|
33.5
|
8500
|
11000
|
LM12749
|
LM12710
|
0.078
|
0.038
|
|
22
|
45.975
|
15.494
|
16.637
|
12.065
|
1.3
|
1.3
|
29.2
|
33.5
|
8500
|
11000
|
LM12749
|
LM12711
|
0.078
|
0.043
|
|
22.225
|
50.005
|
17.526
|
18.288
|
13.970
|
1.3
|
1.3
|
38.5
|
40
|
8000
|
11000
|
M12648
|
M12610
|
0.111
|
0.059
|
|
22.225
|
57.150
|
22.225
|
22.225
|
17.462
|
0.8
|
1.5
|
48
|
50
|
7100
|
9500
|
1280
|
1220
|
0.183
|
0.106
|
|
22.225
|
56.896
|
19.368
|
19.837
|
15.875
|
1.3
|
1.3
|
38
|
40.5
|
7100
|
9500
|
1755
|
1729
|
0.152
|
0.102
|
|
25.000
|
50.005
|
13.495
|
14.260
|
9.525
|
1.5
|
1.0
|
26
|
27.9
|
7500
|
10000
|
07097
|
07196
|
0.085
|
0.035
|
|
25.400
|
50.292
|
14.224
|
14.732
|
10.668
|
1.3
|
1.3
|
27.6
|
32
|
7100
|
10000
|
L44643
|
L44610
|
0.09
|
0.039
|
|
25.400
|
57.150
|
19.431
|
19.431
|
14.732
|
1.5
|
1.5
|
42.5
|
49.0
|
6700
|
9000
|
M84548
|
M84510
|
0.156
|
0.089
|
|
25.400
|
50.005
|
13.495
|
14.260
|
9.525
|
1.0
|
1.0
|
26
|
27.9
|
7500
|
10000
|
07100
|
07196
|
0.084
|
0.035
|
|
26.988
|
50.292
|
14.224
|
14.732
|
10.668
|
3.5
|
1.3
|
27.6
|
32
|
7100
|
10000
|
L44649
|
L44610
|
0.081
|
0.039
|
|
28.575
|
57.150
|
19.845
|
19.355
|
15.875
|
3.5
|
1.5
|
40
|
44.5
|
6700
|
9000
|
1988
|
1922
|
0.141
|
0.077
|
|
28.575
|
68.262
|
22.225
|
22.225
|
17.462
|
0.8
|
1.5
|
55
|
64
|
5600
|
7500
|
02474
|
02420
|
0.257
|
0.152
|
|
28.575
|
73.025
|
22.225
|
22.225
|
17.462
|
0.8
|
3.3
|
54.5
|
64.5
|
5300
|
7100
|
02872
|
02820
|
0.321
|
0.16
|
|
28.575
|
62.000
|
19.050
|
20.638
|
14.288
|
0.8
|
1.3
|
46
|
53
|
6000
|
8000
|
15113
|
15245
|
0.2
|
0.081
|
|
29.000
|
50.292
|
14.224
|
14.732
|
10.668
|
3.5
|
1.3
|
26.8
|
34
|
7100
|
9500
|
L45449
|
L45410
|
0.079
|
0.036
|
|
30.112
|
62.000
|
19.050
|
20.638
|
14.288
|
0.8
|
1.3
|
46
|
53
|
6000
|
8000
|
15116
|
15245
|
0.189
|
0.081
|
|
30.162
|
64.292
|
21.433
|
21.433
|
16.670
|
1.5
|
1.5
|
51
|
64.5
|
5600
|
8000
|
M86649
|
M86610
|
0.211
|
0.128
|
|
30.162
|
68.262
|
22.225
|
22.225
|
17.462
|
2.3
|
1.5
|
55.5
|
70.5
|
5300
|
7500
|
M88043
|
M88010
|
0.263
|
0.146
|
|
31.750
|
68.262
|
22.225
|
22.225
|
17.462
|
3.5
|
1.5
|
55
|
64
|
5600
|
7500
|
02475
|
02420
|
0.229
|
0.152
|
|
31.750
|
69.012
|
19.845
|
19.583
|
15.875
|
3.5
|
1.3
|
47
|
56
|
5600
|
7500
|
14125A
|
14276
|
0.219
|
0.135
|
|
31.750
|
59.131
|
15.875
|
16.764
|
11.811
|
spec.
|
1.3
|
34.5
|
41.5
|
6300
|
8500
|
LM67048
|
LM67010
|
0.127
|
0.062
|
|
31.750
|
69.850
|
23.812
|
25.357
|
19.050
|
0.8
|
1.3
|
71
|
84
|
5600
|
7500
|
2580
|
2523
|
0.282
|
0.169
|
|
31.750
|
62.000
|
18.161
|
19.050
|
14.288
|
spec.
|
1.3
|
46
|
53
|
6000
|
8000
|
15123
|
15245
|
0.165
|
0.081
|
|
31.750
|
62.000
|
19.050
|
20.638
|
14.288
|
0.8
|
1.3
|
46
|
53
|
6000
|
8000
|
15126
|
15245
|
0.176
|
0.081
|
|
31.750
|
73.025
|
29.370
|
27.783
|
23.020
|
1.3
|
3.3
|
74
|
100
|
5000
|
7100
|
HM88542
|
HM88510
|
0.379
|
0.242
|
|
33.338
|
68.262
|
22.225
|
22.225
|
17.462
|
0.8
|
1.5
|
55.5
|
70.5
|
5300
|
7500
|
M88048
|
M88010
|
0.236
|
0.146
|
|
33.338
|
69.012
|
19.845
|
19.583
|
15.875
|
0.8
|
1.3
|
47.0
|
56.0
|
5600
|
7500
|
14131
|
14276
|
0.209
|
0.135
|
|
34.925
|
73.025
|
23.812
|
24.608
|
19.050
|
1.5
|
0.8
|
71
|
86
|
5300
|
7100
|
25877
|
25821
|
0.306
|
0.167
|
|
34.925
|
65.088
|
18.034
|
18.288
|
13.970
|
spec.
|
1.3
|
47.5
|
57.5
|
5600
|
7500
|
LM48548
|
LM48510
|
0.172
|
0.087
|
|
34.925
|
72.233
|
25.400
|
25.400
|
19.842
|
2.3
|
2.3
|
63.5
|
83.5
|
5000
|
7100
|
HM88649
|
HM88610
|
0.307
|
0.188
|
|
35
|
59.131
|
15.875
|
16.764
|
11.938
|
spec.
|
1.3
|
35
|
47
|
6000
|
8000
|
L68149
|
L68110
|
0.117
|
0.056
|
|
35
|
59.975
|
15.875
|
16.764
|
11.938
|
spec.
|
1.3
|
35
|
47
|
6000
|
8000
|
L68149
|
L68111
|
0.117
|
0.064
|
|
35
|
62
|
16.700
|
17.000
|
13.600
|
spec.
|
1.5
|
38
|
50
|
5600
|
8000
|
LM78349
|
LM78310A
|
0.138
|
0.073
|
|
35.717
|
72.233
|
25.400
|
25.400
|
19.842
|
3.5
|
2.3
|
63.5
|
83.5
|
5000
|
7100
|
HM88648
|
HM88610
|
0.298
|
0.188
|
|
36.512
|
76.200
|
29.370
|
28.575
|
23.02
|
3.5
|
3.3
|
78.5
|
106.0
|
4800
|
6700
|
HM89449
|
HM89410
|
0.38
|
0.257
|
|
38.000
|
63.000
|
17.000
|
17.000
|
13.500
|
spec.
|
1.3
|
38.5
|
52
|
5600
|
7500
|
JL69349
|
JL69310
|
0.132
|
0.071
|
|
38.100
|
65.088
|
18.034
|
18.288
|
13.970
|
spec.
|
1.3
|
42.5
|
55
|
5300
|
7500
|
LM29748
|
LM29710
|
0.158
|
0.079
|
|
38.100
|
65.088
|
18.034
|
18.288
|
13.970
|
2.3
|
1.3
|
42.5
|
55
|
5300
|
7500
|
LM29749
|
LM29710
|
0.16
|
0.079
|
|
38.100
|
65.088
|
19.812
|
18.288
|
15.748
|
2.3
|
1.3
|
42.5
|
55
|
5300
|
7500
|
LM29749
|
LM29711
|
0.16
|
0.094
|
|
38.100
|
79.375
|
29.370
|
29.771
|
23.812
|
3.5
|
3.3
|
88
|
106
|
4800
|
6700
|
3490
|
3420
|
0.404
|
0.259
|
|
38.100
|
88.501
|
26.988
|
29.083
|
22.225
|
3.5
|
1.5
|
96.5
|
109
|
4500
|
6000
|
418
|
414
|
0.5
|
0.329
|
|
38.100
|
76.200
|
23.812
|
25.654
|
19.050
|
3.3
|
3.3
|
73.5
|
91
|
5000
|
6700
|
2788
|
2720
|
0.312
|
0.187
|
|
45.242
|
73.431
|
19.558
|
19.812
|
15.748
|
3.5
|
0.8
|
53.5
|
75
|
4800
|
6300
|
LM102949
|
LM102910
|
0.213
|
0.102
|
|
45.618
|
82.931
|
23.812
|
25.400
|
19.050
|
3.5
|
0.8
|
76.5
|
99
|
4500
|
6000
|
25590
|
25520
|
0.343
|
0.203
|
|
45.613
|
82.931
|
26.988
|
25.400
|
22.225
|
3.5
|
2.3
|
76.5
|
99
|
4500
|
6000
|
25590
|
25523
|
0.343
|
0.248
|
|
50.800
|
88.900
|
20.638
|
22.225
|
16.513
|
1.5
|
1.3
|
73
|
85
|
4000
|
5600
|
368
|
362A
|
0.341
|
0.166
|
|
50.800
|
88.900
|
20.638
|
22.225
|
16.513
|
3.5
|
1.3
|
73
|
85
|
4000
|
5600
|
368A
|
362A
|
0.338
|
0.166
|
|
50.800
|
101.600
|
34.925
|
36.068
|
26.988
|
0.8
|
3.3
|
137
|
169
|
3800
|
5000
|
529
|
522
|
0.822
|
0.416
|
|
50.800
|
101.600
|
34.925
|
36.068
|
26.988
|
3.5
|
3.3
|
137
|
169
|
3800
|
5000
|
529X
|
522
|
0.819
|
0.416
|
|
50.800
|
92.075
|
24.608
|
25.400
|
19.845
|
3.5
|
0.8
|
84.5
|
117
|
4000
|
5300
|
28580
|
28521
|
0.46
|
0.247
|
|
53.975
|
107.950
|
36.512
|
36.957
|
28.575
|
3.5
|
3.3
|
144
|
182
|
3600
|
4800
|
539
|
532X
|
0.88
|
0.57
|
|
57.150
|
96.838
|
21.000
|
21.946
|
15.875
|
2.3
|
0.8
|
80.5
|
100
|
3600
|
5000
|
387
|
382A
|
0.423
|
0.179
|
|
57.150
|
96.838
|
25.4
|
21.946
|
20.275
|
3.5
|
2.3
|
80.5
|
100
|
3600
|
5000
|
387A
|
382S
|
0.42
|
0.249
|
|
57.150
|
96.838
|
21.000
|
21.946
|
15.875
|
3.5
|
0.8
|
80.5
|
100
|
3600
|
5000
|
387A
|
382A
|
0.42
|
0.179
|
|
57.150
|
104.750
|
30.162
|
29.317
|
24.605
|
2.3
|
3.3
|
116
|
149
|
3400
|
4800
|
462
|
453X
|
0.694
|
0.376
|
|
60.325
|
101.600
|
25.400
|
25.400
|
19.845
|
3.5
|
3.3
|
91
|
135
|
3400
|
4800
|
28985
|
28920
|
0.538
|
0.272
|
|
60.325
|
100.000
|
25.400
|
25.400
|
19.845
|
3.5
|
3.3
|
91
|
135
|
3400
|
4800
|
28985
|
28921
|
0.538
|
0.232
|
|
63.500
|
110.000
|
22.000
|
21.996
|
18.824
|
3.5
|
1.3
|
85.5
|
113
|
3200
|
4300
|
395
|
394A
|
0.58
|
0.263
|
|
63.500
|
112.712
|
30.162
|
30.162
|
23.812
|
3.5
|
3.3
|
142.0
|
202.0
|
3200
|
4300
|
39585
|
39520
|
0.899
|
0.359
|
|
66.675
|
110.000
|
22.000
|
21.996
|
18.824
|
3.5
|
1.3
|
85.5
|
113
|
3200
|
4300
|
395S
|
394A
|
0.524
|
0.263
|
|
66.675
|
112.712
|
30.162
|
30.048
|
23.812
|
3.5
|
3.2
|
120.0
|
173.0
|
3200
|
4300
|
3984
|
3920
|
0.712
|
0.454
|
|
66.675
|
112.712
|
30.162
|
30.162
|
23.812
|
3.5
|
3.3
|
142
|
202
|
3200
|
4300
|
39590
|
39520
|
0.822
|
0.359
|
|
68.262
|
110.000
|
22.000
|
21.996
|
18.824
|
2.3
|
1.3
|
85.5
|
113
|
3200
|
4300
|
399A
|
394A
|
0.497
|
0.263
|
|
70.000
|
120.000
|
29.795
|
29.007
|
24.237
|
2.0
|
2.0
|
123.0
|
169.0
|
3000
|
4000
|
484
|
472
|
0.822
|
0.493
|
|
71.438
|
127.000
|
36.512
|
36.170
|
28.575
|
3.5
|
3.3
|
166
|
234
|
2800
|
3800
|
567A
|
563
|
1.23
|
0.655
|
|
73.025
|
112.712
|
25.400
|
25.400
|
19.050
|
3.5
|
3.3
|
96
|
152
|
2800
|
4000
|
29685
|
29620
|
0.62
|
0.273
|
|
73.025
|
127.000
|
36.512
|
36.170
|
28.575
|
3.5
|
3.3
|
166.0
|
234.0
|
2800
|
3800
|
567
|
563
|
1.17
|
0.655
|
|
76.200
|
139.992
|
36.512
|
36.098
|
28.575
|
3.5
|
3.3
|
175.0
|
260
|
2600
|
3400
|
575
|
572
|
1.61
|
0.788
|
|
80.962
|
139.992
|
36.512
|
36.098
|
28.575
|
3.5
|
3.3
|
175.0
|
260
|
2600
|
3400
|
581
|
572
|
1.44
|
0.788
|
|
82.550
|
139.992
|
36.512
|
36.098
|
28.575
|
3.5
|
3.3
|
175.0
|
260
|
2600
|
3400
|
580
|
572
|
1.39
|
0.788
|
|
82.550
|
146.050
|
41.275
|
41.275
|
31.750
|
3.5
|
3.3
|
207
|
296
|
2400
|
3200
|
663
|
653
|
1.85
|
0.891
|
|
83.345
|
125.412
|
25.400
|
25.400
|
19.845
|
3.5
|
1.5
|
102
|
164
|
2600
|
3600
|
27690
|
27620
|
0.727
|
0.348
|
|
84.138
|
136.525
|
30.162
|
29.769
|
22.225
|
3.5
|
3.3
|
130.0
|
192.0
|
2600
|
3400
|
498
|
493
|
1.04
|
0.55
|
|
85.026
|
150.089
|
44.450
|
46.672
|
36.512
|
3.5
|
3.3
|
265
|
370
|
2400
|
3200
|
749
|
742
|
2.14
|
1.07
|
|
96.838
|
148.430
|
28.575
|
28.971
|
21.433
|
3.5
|
3
|
140
|
218.0
|
2200
|
3000
|
42381
|
42584
|
1.13
|
0.553
|
Recommended products
FIND US
- *Company:
- * Website:
- *Name:
- * E-Mail:
- *Message:
-
E:accor@accormachinery.com.cn A: 4F, Tower 9, No.675 Shiji Avenue, Yinzhou, Ningbo 315040, China
P:0086 574 87939850 F:0086 574 87939860
© 2016 NINGBO ACCOR BEARING CO., LTD.
