120 SPROCKETS

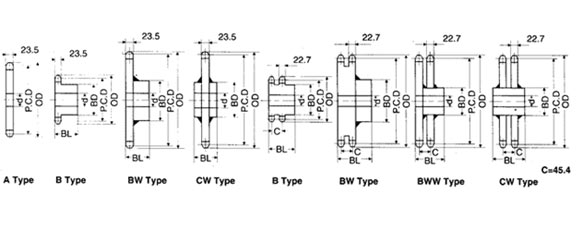

No.ofTeeth	OutsideDiam.OD	Pitch Diam. P.C.D.	Bottom or Caliper Diam.	StockBore	Type＂B＂SINGLE STRAND						Type＂A＂			Type＂B＂DOUBLE STRAND
					HUB		BORE		Wt.kg	Material	stockd	Wt.kg	Material	HUB		BORE		Wt.kg	Material
					Diam.BD	length Thru Bore BL	Min.	Max.	Wt.kg	Material	stockd	Wt.kg	Material	Diam.BD	length Thru Bore BL	Min.	Max.	Wt.kg	Material
9	127	111	87.5	20	70	56	22	46	2.7	S45C			SS41		1				S45C
10	140	123	101	20	78	56	22	51	3.2		22	2.16		80	100	28	55	8
11	153	135	112	20	91	56	22	60	4		22	2.6		90	100	28	60	8.7
12	165	148	125	20	98	56	22	66	4.8		22	3.1		100	100	30	66	9.2
13	177	159	136	20	98	56	22	66	5.3		22	3.6		115	100	30	75	10.9
14	190	171	149	20	107	56	22	75	6.3		22	4.2		120	100	30	80	11.4
15	202	183	160	20	117	63	22	80	7.8		22	4.6		120	100	40	80	13.2	SS41 (Welding way)S35C
16	214	195	173	20	117	63	22	80	8.4		22	5.5		140	100	40	95	16.5
17	227	207	184	20	117	63	22	80	9.1		22	6.2		140	100	40	95	19
18	239	219	197	20	117	63	22	80	9.9		22	6.95		150	100	40	103	21
19	251	231	208	20	117	63	22	80	10.7		22	7.7		150	100	40	103	23
20	263	244	221	20	127	63	22	89	12		22	8.55		150	100	40	103	26
21	276	256	233	20	127	63	22	89	13		22	9.4		150	100	40	103	28
22	288	268	245	26	127	63	28	89	12.4	SS41 BW type (Welding way)	28	10.3		147	100	40	103	30
23	300	280	257	26	127	63	28	89	14.5		28	11.3		147	100	40	103	33
24	312	292	270	26	127	63	28	89	15.2		28	12.3		157	100	40	110	31
25	324	304	281	26	127	63	28	89	16.2		28	13.3		157	100	40	110	33
26	337	316	294	26	127	63	28	89	17.2		28	14.4		157	100	40	110	35
27	349	328	305	26							28	15.5
28	361	340	318	26	137	71	28	95	20.9		28	16.7		157	100	40	110	39
29	373	352	330	26							28	17.8
30	385	365	342	26	137	71	28	95	23.2		28	19.2		157	100	40	110	43.9
31	398	377	354	26							28	20.4
32	410	389	366	26	137	71	28	95	25.7		28	21.8		157	100	40	110	47
33	422	401	378	26	137	71	28	95	28.4		28	23.2
34	434	413	391	26							28	24.6
35	446	425	402	26	137	71	28	95	29.7		28	26.1		157	100	40	110	56.8
36	458	437	415	26	137	71	28	95	32		28	27.6		157	100	40	110	60
38	483	461	439	26	137	71	28	95	35		28	30.8		157	100	40	110	67
40	507	486	463	26	147	80	28	103	38.2		28	34.1		177	140	45	125	84.3
42	531	510	488	26	147	80	28	103	42		28	37.6		177	140	45	125	87
44	556	534	512	26							28	41.2
45	568	546	524	26	147	80	28	103	47.6		28	43.1		177	140	45	125	98.5
46	580	558	526	26							28	45.1
48	604	583	560	26	147	80	28	103	53		28	49		177	140	45	125	104
50	628	607	585	26	147	80	28	103	58		28	53.3		177	140	45	125	115
54	677	655	633	26	147	100	28	103	65.2		28	62.1		177	140	45	125	121
60	750	728	706	26	167	100	28	103	78		28	76.7		177	140	45	125	131
63	786	765	742	26							28	84.5
70	871	849	827	26							28	104
75	932	910	887	26							28	120
80	993	970	948	26							28	136
